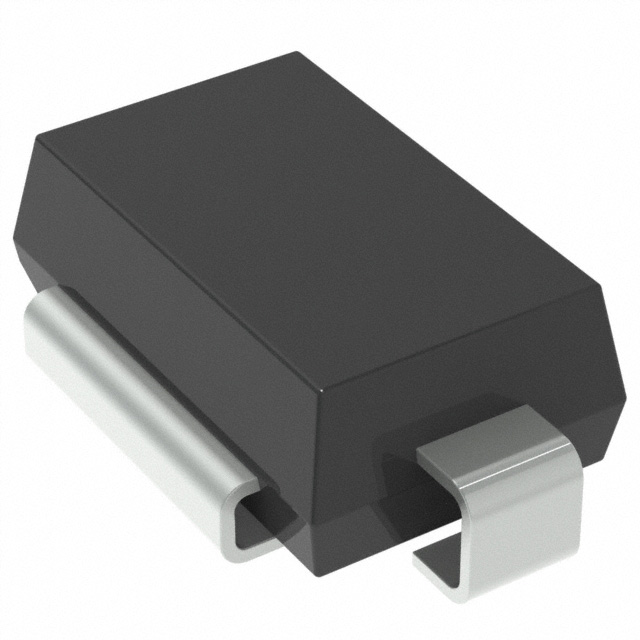

DM8W28AQ-13
TVS DIODE 28VWM 45.4VC DO218Manufacturer: Diodes Incorporated
Categories: TVS Diodes
Quality Control: Learn More
Diodes Incorporated DM8W28AQ-13 is a unidirectional TVS diode designed for robust transient voltage suppression. This automotive-grade component, qualified to AEC-Q101 standards, features a 28V reverse standoff voltage and a 31.1V minimum breakdown voltage. It offers a low 45.4V maximum clamping voltage at a peak pulse current of 145A (10/1000µs), handling a substantial 6.6kW peak pulse power. Packaged in a surface-mount DO-218AB case, it operates across an extended temperature range of -55°C to 175°C. This diode is suitable for protecting sensitive circuitry in automotive applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-218AB |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Applications | - |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 145A |
| Voltage - Reverse Standoff (Typ) | 28V |
| Supplier Device Package | DO-218 |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 31.1V |
| Voltage - Clamping (Max) @ Ipp | 45.4V |
| Power - Peak Pulse | 6600W (6.6kW) |
| Power Line Protection | No |
| Grade | Automotive |
| Qualification | AEC-Q101 |
