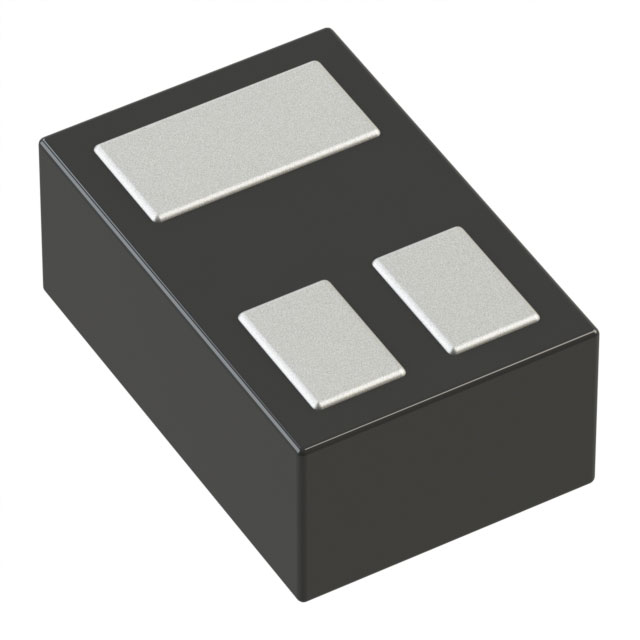

DESD6V8DLP-7
TVS DIODE 5.25VWM 3-X1DFN1006Manufacturer: Diodes Incorporated
Categories: TVS Diodes
Quality Control: Learn More
Diodes Incorporated DESD6V8DLP-7 is a transient voltage suppressor (TVS) diode designed for robust circuit protection. This surface mount device, housed in an X1-DFN1006-3 package, offers a reverse standoff voltage of 5.25V (typical) and a breakdown voltage of 6.4V (minimum). It provides 70W of peak pulse power dissipation, safeguarding sensitive components from voltage transients. The DESD6V8DLP-7 is suitable for general-purpose applications, often found in consumer electronics and industrial automation where protection against electrostatic discharge (ESD) and other voltage surges is critical. Its compact size and reliable performance make it an efficient choice for modern circuit designs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-UFDFN |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | - |
| Voltage - Reverse Standoff (Typ) | 5.25V |
| Supplier Device Package | X1-DFN1006-3 |
| Unidirectional Channels | 2 |
| Voltage - Breakdown (Min) | 6.4V |
| Voltage - Clamping (Max) @ Ipp | - |
| Power - Peak Pulse | 70W |
| Power Line Protection | No |
