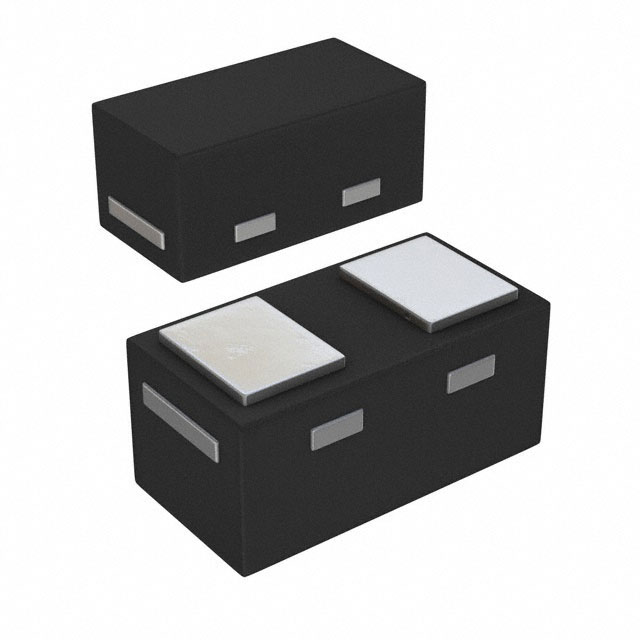

DESD5V0V1BDLP3-7
TVS DIODE 5VWM 12.8VC ESN0603-2Manufacturer: Diodes Incorporated
Categories: TVS Diodes
Quality Control: Learn More
Diodes Incorporated DESD5V0V1BDLP3-7 is a bidirectional Transient Voltage Suppressor (TVS) diode designed for robust circuit protection. This component features a 5V reverse standoff voltage and a 12.8V maximum clamping voltage at a peak pulse current of 2A (8/20µs). With a 20W peak pulse power rating and a low capacitance of 5.3pF at 1MHz, it offers efficient transient suppression without significantly impacting signal integrity. The device operates across a wide temperature range of -65°C to 150°C (TJ) and is packaged in a compact 0201 (0603 Metric) surface mount configuration (X2-ESN0603-2), supplied on tape and reel. Its general-purpose application suitability makes it valuable for protection in automotive, industrial, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0201 (0603 Metric) |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | 5.3pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 2A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Supplier Device Package | X2-ESN0603-2 |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 12.8V |
| Power - Peak Pulse | 20W |
| Power Line Protection | No |
