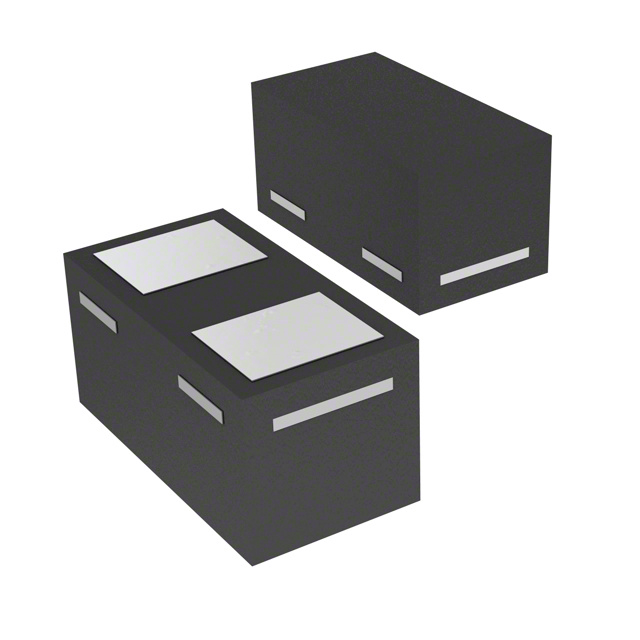

D3V3Q1B2DLP3-7
TVS DIODE 3.3VWM 7.5VC ESN0603-2Manufacturer: Diodes Incorporated
Categories: TVS Diodes
Quality Control: Learn More
Diodes Incorporated D3V3Q1B2DLP3-7 is a bidirectional transient voltage suppressor (TVS) diode designed for surface mount applications. This component offers a reverse standoff voltage of 3.3V and a clamping voltage of 7.5V at 4A (8/20µs), with a peak pulse power of 30W. Featuring a low capacitance of 6pF at 1MHz, it is suitable for protecting sensitive circuitry in general-purpose applications. The D3V3Q1B2DLP3-7 is housed in a compact 0201 (0603 Metric) package, specifically the X3-ESN0603-2, and is supplied in tape and reel. Its operational temperature range is -65°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0201 (0603 Metric) |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | 6pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 4A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Supplier Device Package | X3-ESN0603-2 |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 3.8V |
| Voltage - Clamping (Max) @ Ipp | 7.5V |
| Power - Peak Pulse | 30W |
| Power Line Protection | No |
