AH9247DNTR-G1

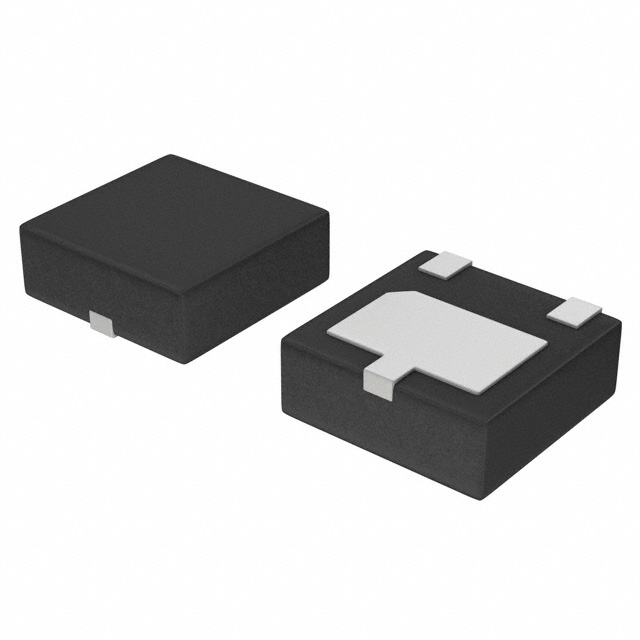

MAGNETIC SWITCH OMNIPOLAR 3DFNManufacturer: Diodes Incorporated
Categories: Switches (Solid State)
Quality Control: Learn More
Diodes Incorporated AH9247DNTR-G1 is a digital Hall effect sensor designed for omnipolar magnetic field detection. This surface-mount device, housed in a compact 3-WDFN (2x2) package, offers a digital output indicative of the presence of a magnetic field from either pole. Key specifications include a wide operating voltage range of 2.5V to 5.5V and a low supply current of only 15µA (max). The sensor features a sensitive trip point of ±4mT and a release point of ±3.2mT, ensuring reliable operation. Typical applications for this component include position sensing, proximity detection, and lid closure detection in consumer electronics, industrial automation, and automotive systems. The AH9247DNTR-G1 is supplied on tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-WDFN Exposed Pad |
| Output Type | Digital |
| Polarization | North Pole, South Pole |
| Mounting Type | Surface Mount |
| Function | Omnipolar Switch |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.5V ~ 5.5V |
| Technology | Hall Effect |
| Sensing Range | ±4mT Trip, ±3.2mT Release |
| Current - Output (Max) | 2mA |
| Current - Supply (Max) | 15µA |
| Supplier Device Package | 3-DFN (2x2) |
| Test Condition | 25°C |
