AH3774-P-A

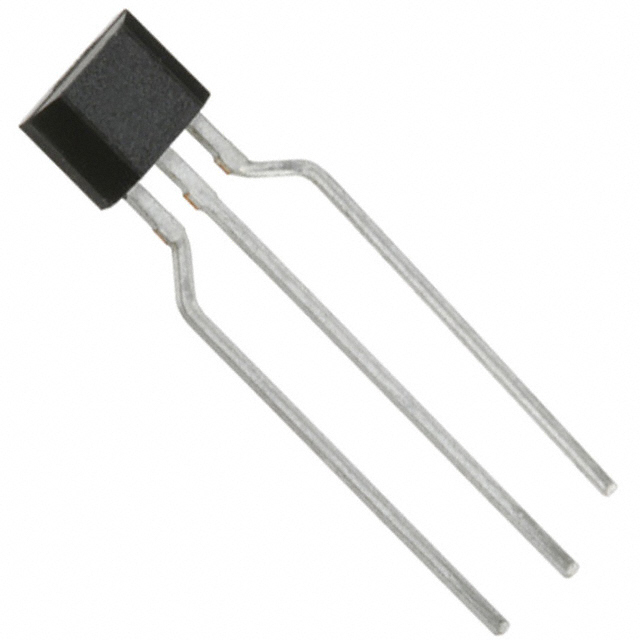

MAGNETIC SWITCH LATCH 3SIPManufacturer: Diodes Incorporated
Categories: Switches (Solid State)
Quality Control: Learn More
The Diodes Incorporated AH3774-P-A is a digital Hall Effect latching magnetic switch. This device features an open-drain output, capable of sourcing up to 60mA. It operates over a wide supply voltage range of 3V to 28V, with a maximum supply current of 4mA. The Hall Effect sensor exhibits temperature compensation and is designed for latching operation, requiring a south pole for activation. It has a typical trip field of 6mT and a release field of -6mT. Packaged in a 3-SIP module suitable for through-hole mounting, the AH3774-P-A is rated for operation across an ambient temperature range of -40°C to 125°C. This component finds application in automotive and industrial sectors for position sensing and speed detection.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Cut Tape (CT) |
| Package / Case | 3-SIP Module |
| Output Type | Open Drain |
| Polarization | South Pole |
| Mounting Type | Through Hole |
| Function | Latch |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 3V ~ 28V |
| Technology | Hall Effect |
| Sensing Range | 6mT Trip, -6mT Release |
| Current - Output (Max) | 60mA |
| Current - Supply (Max) | 4mA |
| Supplier Device Package | 3-SIP |
| Test Condition | -40°C ~ 125°C |
