AH3373-P-A
MAGNETIC SWITCH UNIPOLAR 3SIPManufacturer: Diodes Incorporated
Categories: Switches (Solid State)
Quality Control: Learn More

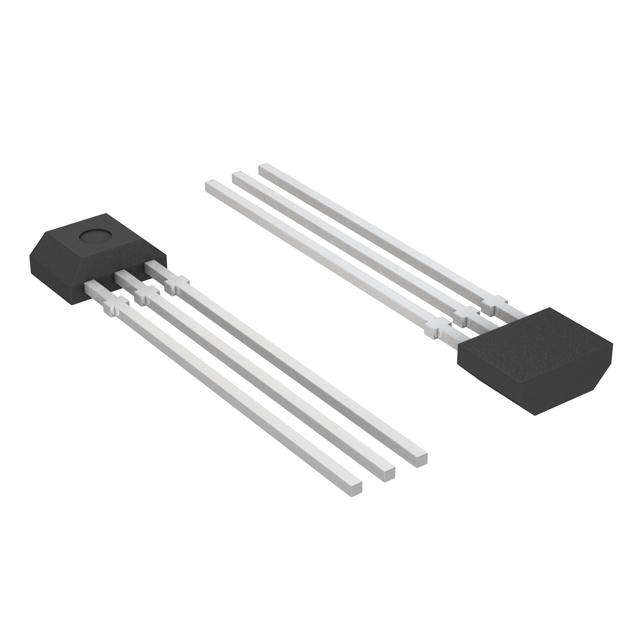

Diodes Incorporated AH3373-P-A is a unipolar Hall effect switch designed for robust operation in demanding environments. This 3-SIP packaged device, utilizing through-hole mounting with formed leads, features an open-drain output capable of sourcing up to 55mA. The AH3373-P-A exhibits a typical trip point of 5.5mT and a release point of 3.5mT, responding to the south pole of a magnetic field. Its operating temperature range spans from -40°C to 125°C, making it suitable for applications in automotive, industrial, and consumer electronics. The device operates from a wide supply voltage range of 3V to 28V, with a maximum quiescent current draw of 4mA. This component is supplied in Tape & Box packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Box (TB) |
| Package / Case | 3-SIP, Formed Leads |
| Output Type | Open Drain |
| Polarization | South Pole |
| Mounting Type | Through Hole |
| Function | Unipolar Switch |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 3V ~ 28V |
| Technology | Hall Effect |
| Sensing Range | 5.5mT Trip, 3.5mT Release |
| Current - Output (Max) | 55mA |
| Current - Supply (Max) | 4mA |
| Supplier Device Package | 3-SIP |
| Test Condition | -40°C ~ 125°C |
