AH276Z4-AG1

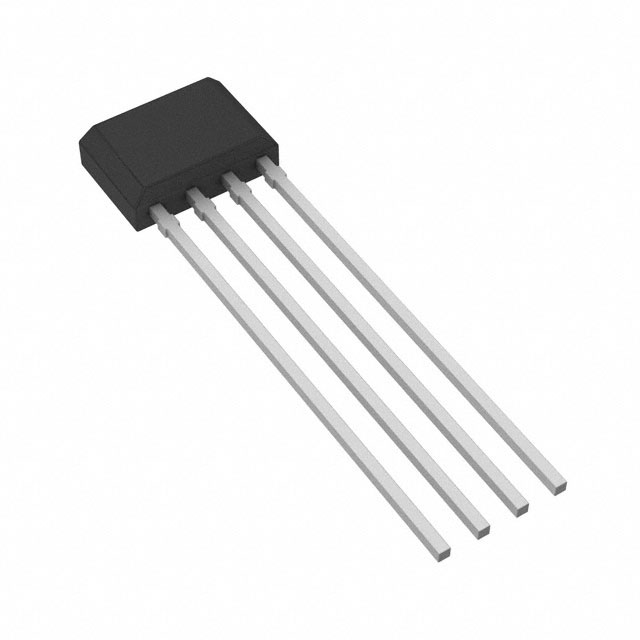

MAGNETIC SWITCH LATCH TO94Manufacturer: Diodes Incorporated
Categories: Switches (Solid State)
Quality Control: Learn More
Diodes Incorporated AH276Z4-AG1 is a Hall Effect latch sensor with an open collector output. This digital switch features temperature compensation for stable operation across its specified temperature range of -20°C to 85°C. Designed for through-hole mounting in a TO-94 (4-SSIP) package, it is supplied on Tape & Reel. The device operates with a supply voltage of 3.5V to 16V and can source an output current of up to 350mA. Its latching function activates when a South pole magnetic field exceeds a 5mT trip point and remains active until the field drops below a -5mT release point. This component is suitable for applications in automotive, industrial, and consumer electronics requiring reliable magnetic sensing and switching.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SSIP |
| Output Type | Open Collector |
| Polarization | South Pole |
| Mounting Type | Through Hole |
| Function | Latch |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Voltage - Supply | 3.5V ~ 16V |
| Technology | Hall Effect |
| Sensing Range | 5mT Trip, -5mT Release |
| Current - Output (Max) | 350mA |
| Current - Supply (Max) | 16mA |
| Supplier Device Package | TO-94 |
| Test Condition | 25°C |
