AH1888-ZG-7
MAGNETIC SWITCH OMNIPOLAR SOT553Manufacturer: Diodes Incorporated
Categories: Switches (Solid State)
Quality Control: Learn More

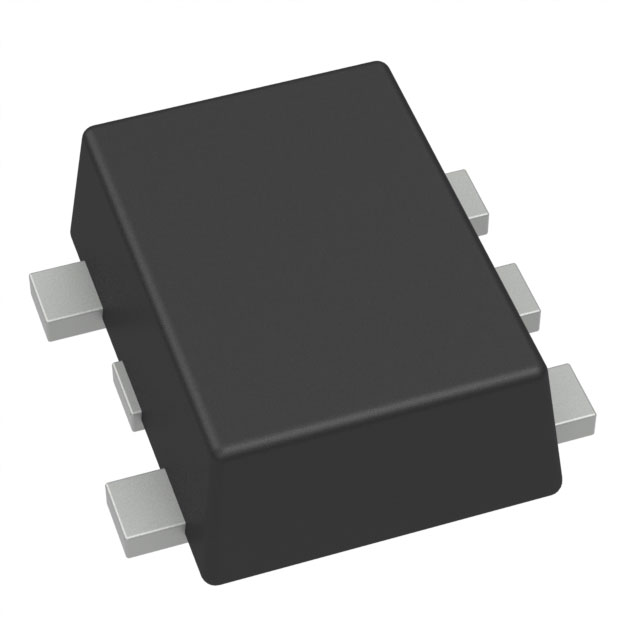

Diodes Incorporated AH1888-ZG-7 is a digital omnipolar Hall effect switch in a SOT-553 package. This push-pull output device operates from a supply voltage range of 1.65V to 3.3V, with a low supply current of 12µA maximum. The AH1888-ZG-7 exhibits a typical trip magnetic flux density of ±7.9mT and a release flux density of ±3.5mT, responding to both north and south poles. Its surface mount configuration and compact SOT-553 package make it suitable for space-constrained applications. This component is commonly utilized in consumer electronics, automotive systems, and industrial automation for position sensing and detection. Operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-553 |
| Output Type | Push-Pull |
| Polarization | North Pole, South Pole |
| Mounting Type | Surface Mount |
| Function | Omnipolar Switch |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.65V ~ 3.3V |
| Technology | Hall Effect |
| Sensing Range | ±7.9mT Trip, ±3.5mT Release |
| Current - Output (Max) | - |
| Current - Supply (Max) | 12µA |
| Supplier Device Package | SOT-553 |
| Test Condition | 25°C |
