AH1803-SNG-7

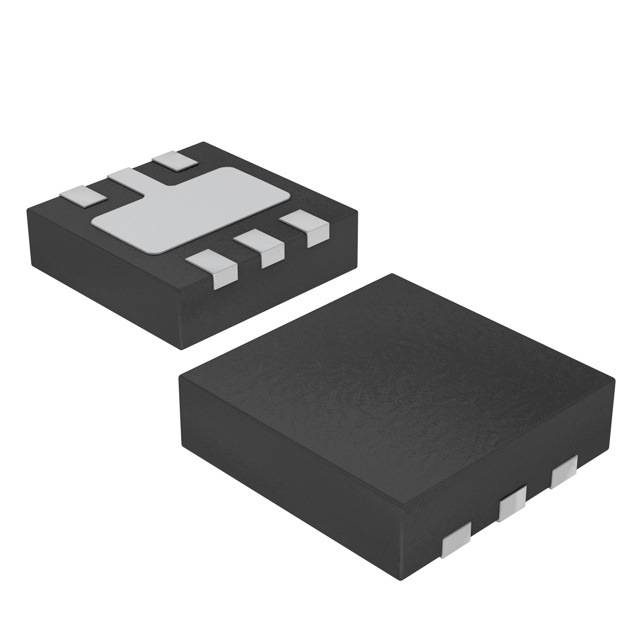

MAG SWITCH OMNIPOLAR DFN2020-6Manufacturer: Diodes Incorporated
Categories: Switches (Solid State)
Quality Control: Learn More
Diodes Incorporated AH1803-SNG-7 is an omnipolar Hall effect switch designed for robust magnetic sensing applications. This device features a push-pull output and operates across a wide supply voltage range of 2.4V to 5.5V, with a low supply current of only 16µA. The AH1803-SNG-7 exhibits sensitive magnetic detection capabilities, with a typical trip point of ±4mT and a release point of ±1mT, responding to both north and south magnetic poles. Its U-DFN2020-6 package with an exposed pad ensures efficient heat dissipation and reliable surface mounting. Common applications for this component include position sensing, lid/door detection, and motor control in consumer electronics, industrial automation, and automotive systems. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UDFN Exposed Pad |
| Output Type | Push-Pull |
| Polarization | North Pole, South Pole |
| Mounting Type | Surface Mount |
| Function | Omnipolar Switch |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.4V ~ 5.5V |
| Technology | Hall Effect |
| Sensing Range | ±4mT Trip, ±1mT Release |
| Current - Output (Max) | - |
| Current - Supply (Max) | 16µA |
| Supplier Device Package | U-DFN2020-6 |
| Test Condition | 25°C |
