AH1751-RG-7-A

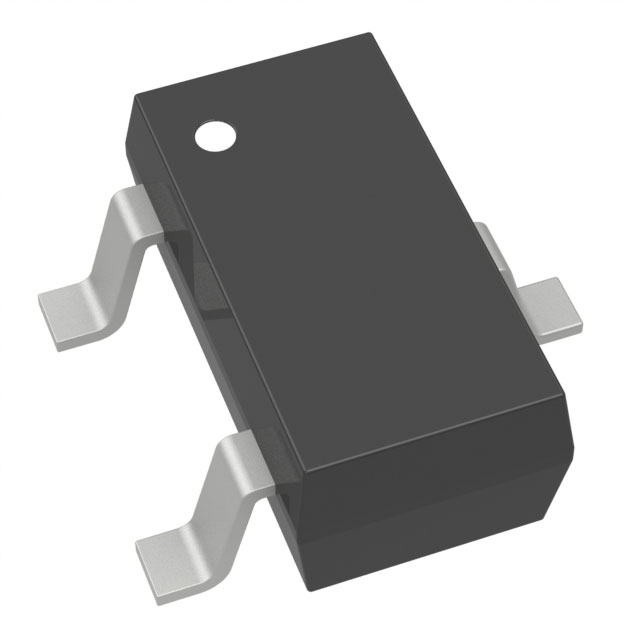

MAGNETIC SWITCH LATCH SC59RManufacturer: Diodes Incorporated
Categories: Switches (Solid State)
Quality Control: Learn More
Diodes Incorporated AH1751-RG-7-A is a Hall Effect latching magnetic switch featuring an open collector output. This device is designed for applications requiring reliable magnetic sensing and switching. Key specifications include a supply voltage range of 3.5V to 20V with a maximum supply current of 6mA, and a maximum output current of 100mA. The AH1751-RG-7-A exhibits temperature compensation for stable operation across its specified temperature range of -40°C to 125°C. It is sensitive to the South pole of a magnet, with typical trip and release points of 7mT and -7mT respectively. The component is housed in a SC-59R (TO-236-3, SC-59, SOT-23-3) package for surface mounting and is supplied on a tape and reel. This Hall effect switch is utilized in various industries, including automotive, industrial, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Output Type | Open Collector |
| Polarization | South Pole |
| Mounting Type | Surface Mount |
| Function | Latch |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 3.5V ~ 20V |
| Technology | Hall Effect |
| Sensing Range | 7mT Trip, -7mT Release |
| Current - Output (Max) | 100mA |
| Current - Supply (Max) | 6mA |
| Supplier Device Package | SC-59R |
| Test Condition | 25°C |
