PT7M1233A-10TCEX
IC SUPERVISOR 1 CHANNEL SOT223-3Manufacturer: Diodes Incorporated
Categories: Supervisors
Quality Control: Learn More

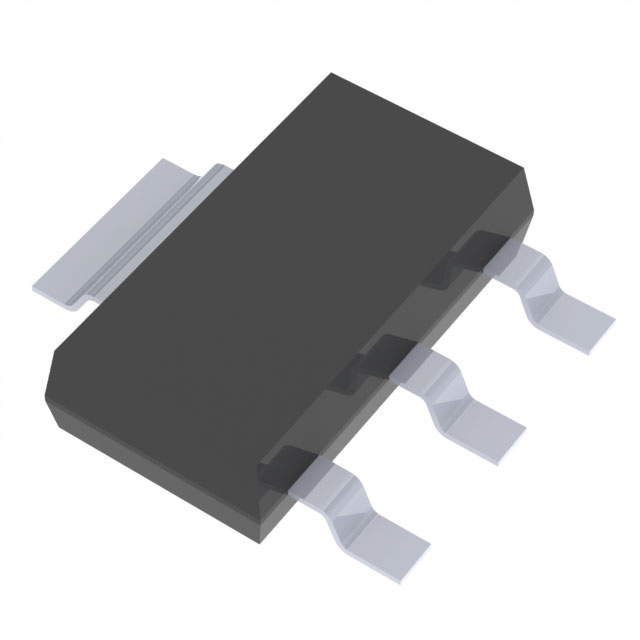

The Diodes Incorporated PT7M1233A-10TCEX is a single-channel supervisor IC designed for surface mount applications. This component, packaged in a SOT-223-3 (TO-261-4, TO-261AA) footprint, features a bidirectional output and monitors a single voltage threshold of 2.88V. It provides an active low reset signal with a minimum timeout of 140ms, suitable for power-on reset sequences. The operating temperature range is specified from -40°C to 85°C (TA). This device finds application in various industries, including consumer electronics and industrial control systems, where robust voltage monitoring and reset functionality are critical. The PT7M1233A-10TCEX is supplied on tape and reel for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-261-4, TO-261AA |
| Mounting Type | Surface Mount |
| Output | Bidirectional |
| Type | Simple Reset/Power-On Reset |
| Reset | Active Low |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Voltages Monitored | 1 |
| Reset Timeout | 140ms Minimum |
| Voltage - Threshold | 2.88V |
| Supplier Device Package | SOT-223-3 |
| Programmable | Not Verified |
