AP43776QZDZW20-13
ACDC DECODER W-QFN4040-20 T&R 3KManufacturer: Diodes Incorporated
Categories: Specialized
Quality Control: Learn More

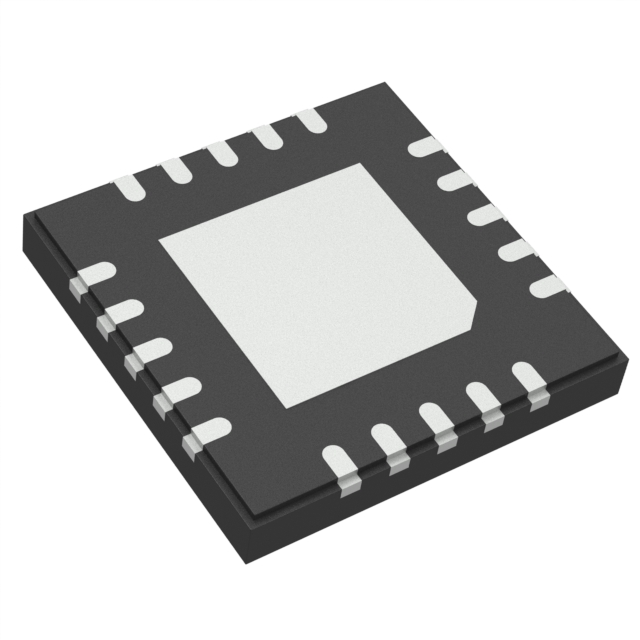

Diodes Incorporated AP43776QZDZW20-13 is a Quick Charge decoder PMIC. This surface mount component, housed in a 20-WFQFN Exposed Pad package (W-QFN4040-20 SWP Type A1), operates within a 3V to 5.5V supply voltage range and draws a maximum of 3mA. Designed for efficient power management, it is suitable for applications requiring robust charging protocols. The component features wettable flank mounting for enhanced solder joint reliability and is supplied in a Tape & Reel (TR) package for automated assembly. Its operating temperature range is -40°C to 125°C (TA). This device is commonly utilized in consumer electronics and power delivery systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFQFN Exposed Pad |
| Mounting Type | Surface Mount, Wettable Flank |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 3V ~ 5.5V |
| Applications | Quick Charge Decoder |
| Current - Supply | 3mA (Max) |
| Supplier Device Package | W-QFN4040-20 (SWP) (Type A1) |
Request a Quote
