PI5A4764GAEX

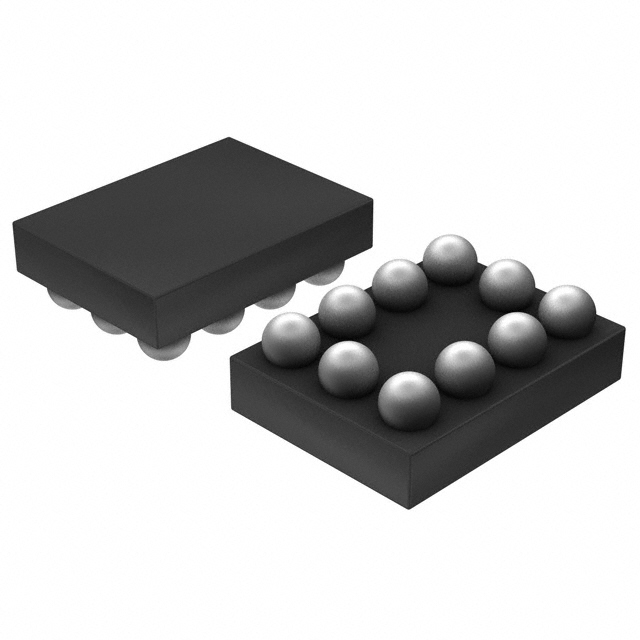

IC SWITCH DUAL SPDT 10CSPManufacturer: Diodes Incorporated
Categories: Special Purpose
Quality Control: Learn More
Diodes Incorporated PI5A4764GAEX, a dual SPDT analog switch, is engineered for high-fidelity audio signal routing. This 2-channel device features a 1:1 multiplexer/demultiplexer configuration with a 37MHz -3dB bandwidth, ensuring excellent audio performance. Optimized for low distortion, it incorporates break-before-make and clickless switching mechanisms, minimizing audible artifacts during transitions. The PI5A4764GAEX operates from a single supply voltage ranging from 1.65V to 5.5V and offers a low on-state resistance of 600mOhm maximum. Its compact 10-CSP (2.07x1.55) WFBGA package facilitates efficient board space utilization in demanding applications such as consumer electronics and professional audio equipment. The operating temperature range is -40°C to 85°C, and it is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Break-Before-Make, Clickless |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WFBGA, CSPBGA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Audio |
| On-State Resistance (Max) | 600mOhm |
| -3db Bandwidth | 37MHz |
| Supplier Device Package | 10-CSP (2.07x1.55) |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Channels | 2 |
