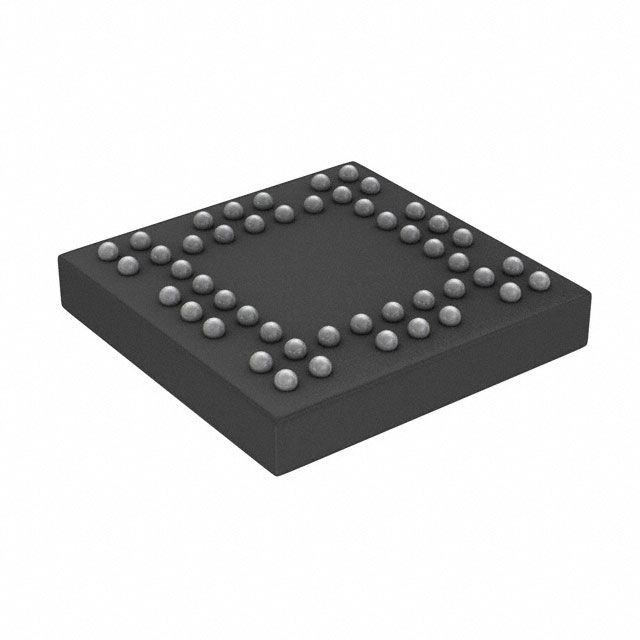

PI3WVR12612NEE
IC VIDEO SWITCH DP/HDMI 50TFBGAManufacturer: Diodes Incorporated
Categories: Special Purpose
Quality Control: Learn More
Diodes Incorporated PI3WVR12612NEE is a 1-channel, 2:1 multiplexer/demultiplexer IC designed for high-speed video signal routing. Featuring a -3dB bandwidth of 4.1GHz, this device is optimized for applications requiring the transmission of uncompressed digital video signals. The PI3WVR12612NEE supports HDMI interfaces and is housed in a 50-TFBGA (5x5) surface-mount package, facilitating compact board designs. Its single 3.3V supply operation makes it suitable for power-sensitive systems. This component is commonly utilized in consumer electronics, display interfaces, and professional video equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | HDMI |
| Packaging | Tray |
| Package / Case | 50-TFBGA |
| Mounting Type | Surface Mount |
| Operating Temperature | - |
| Applications | Video |
| On-State Resistance (Max) | - |
| -3db Bandwidth | 4.1GHz |
| Supplier Device Package | 50-TFBGA (5x5) |
| Voltage - Supply, Single (V+) | 3.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Channels | 1 |
