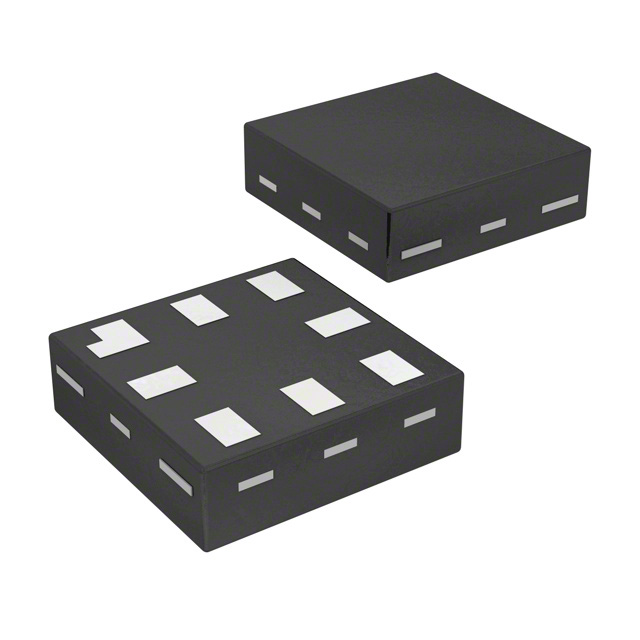

PI3USB32XAEX
IC USB SWITCH 8TLLGAManufacturer: Diodes Incorporated
Categories: Special Purpose
Quality Control: Learn More
Diodes Incorporated PI3USB32XAEX is a single-channel USB switch IC designed for high-speed data transfer applications. This component features a 2:1 multiplexer/demultiplexer configuration, supporting USB 2.0 with a -3dB bandwidth of 2.11GHz. Its bi-directional capability allows for flexible signal routing. The PI3USB32XAEX is housed in an 8-TLLGA (1.5x1.5) package, suitable for surface mount applications. With an on-state resistance of 10 Ohms (max) and an operating temperature range of -40°C to 85°C, it is engineered for reliability in demanding environments. This device finds application in various industries including consumer electronics, computing, and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Bi-Directional, USB 2.0 |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-UFLGA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | USB |
| On-State Resistance (Max) | 10Ohm |
| -3db Bandwidth | 2.11GHz |
| Supplier Device Package | 8-TLLGA (1.5x1.5) |
| Voltage - Supply, Single (V+) | 3V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Channels | 1 |
