PI3USB3200ZREX
USB3 SWITCH W-QFN2525-24Manufacturer: Diodes Incorporated
Categories: Special Purpose
Quality Control: Learn More
Diodes Incorporated PI3USB3200ZREX is a 3-channel USB 3.1 switch IC. This component features a 3:2 multiplexer/demultiplexer configuration, enabling flexible routing of USB signals. With a -3dB bandwidth of 7GHz, it supports high-speed data transfer essential for USB 3.1 and USB 2.0 applications. The device operates on a single supply voltage ranging from 2.7V to 4V and is designed for surface mount installation within a 24-WFQFN exposed pad package, specifically a 2.5x2.5mm 24-TQFN. Operating temperature ranges from -40°C to 85°C. This USB switch is commonly utilized in consumer electronics, mobile devices, and computing peripherals requiring robust USB signal management.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | USB 2.0, USB 3.1 |
| Packaging | Tape & Reel (TR) |

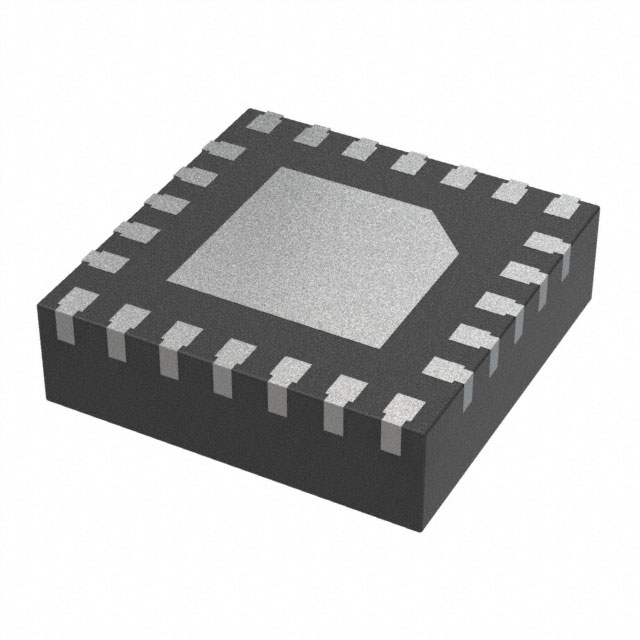

| Package / Case | 24-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | USB |
| On-State Resistance (Max) | - |
| -3db Bandwidth | 7GHz |
| Supplier Device Package | 24-TQFN (2.5x2.5) |
| Voltage - Supply, Single (V+) | 2.7V ~ 4V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 3:2 |
| Number of Channels | 3 |
