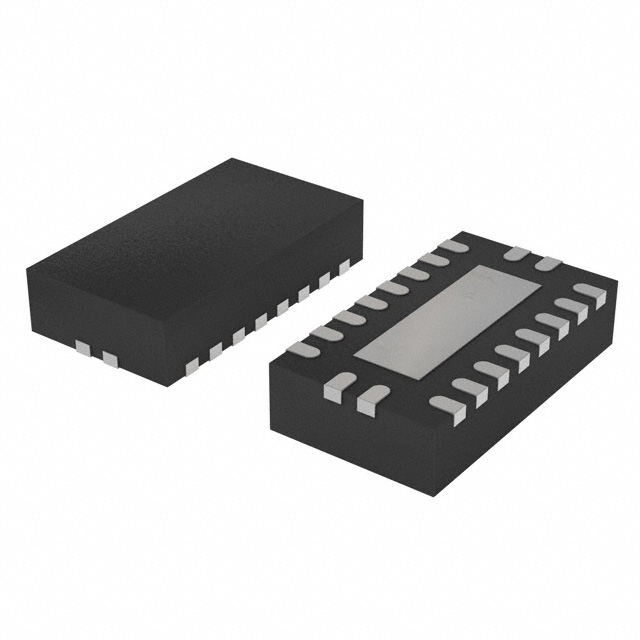

PI3USB3200ZBBEX
USB3 SWITCH V-QFN4525-20Manufacturer: Diodes Incorporated
Categories: Special Purpose
Quality Control: Learn More
Diodes Incorporated PI3USB3200ZBBEX is a 3-channel USB 3.1 switch designed for high-speed data routing. This electronic component offers a -3dB bandwidth of 7GHz, enabling efficient signal integrity for demanding USB applications. Featuring a 3:2 multiplexer/demultiplexer configuration, it supports both USB 2.0 and USB 3.1 interfaces. The PI3USB3200ZBBEX operates with a single supply voltage ranging from 2.7V to 4V and is packaged in a compact 20-TQFN (2.5x4.5) surface-mount configuration, supplied on tape and reel. Its robust operating temperature range of -40°C to 85°C makes it suitable for use in automotive, consumer electronics, and industrial automation sectors where reliable USB connectivity is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | USB 2.0, USB 3.1 |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | USB |
| On-State Resistance (Max) | - |
| -3db Bandwidth | 7GHz |
| Supplier Device Package | 20-TQFN (2.5x4.5) |
| Voltage - Supply, Single (V+) | 2.7V ~ 4V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 3:2 |
| Number of Channels | 3 |
