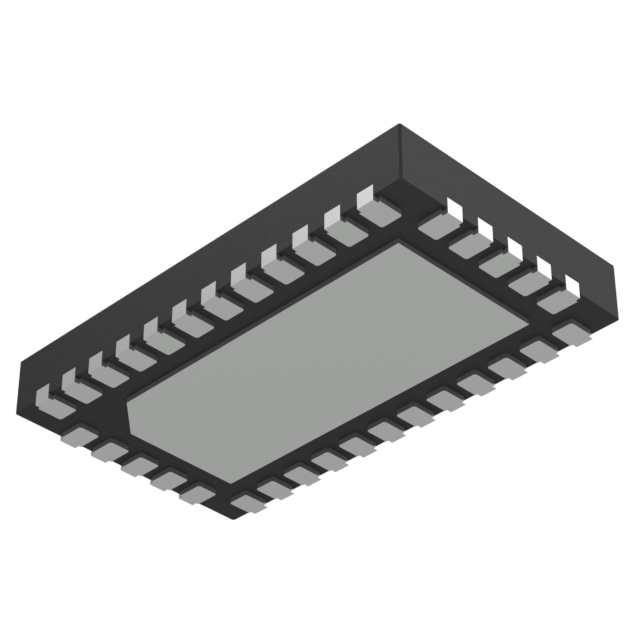

PI3USB31534ZTFEX
IC SWITCH USB3 U-QFN2545-34Manufacturer: Diodes Incorporated
Categories: Special Purpose
Quality Control: Learn More
Diodes Incorporated PI3USB31534ZTFEX is a high-speed USB 3.1 and HDMI 2.0 compatible video switch IC. This 4-channel device features a 6:4 multiplexer/demultiplexer configuration with a -3dB bandwidth of 7GHz, ensuring robust signal integrity for demanding applications. Designed for surface mounting, it utilizes a 34-UTQFN (2.5x4.5) package with an exposed pad. The PI3USB31534ZTFEX operates with a single supply voltage ranging from 3V to 3.6V and is rated for an operating temperature range of -40°C to 85°C. Its capabilities make it suitable for integration into systems requiring efficient switching for USB and video data streams, commonly found in consumer electronics and computing platforms. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | HDMI 2.0, USB 3.1 |
| Packaging | Tape & Reel (TR) |
| Package / Case | 34-UFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | USB, Video |
| On-State Resistance (Max) | - |
| -3db Bandwidth | 7GHz |
| Supplier Device Package | 34-UTQFN (2.5x4.5) |
| Voltage - Supply, Single (V+) | 3V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 6:4 |
| Number of Channels | 4 |
