PI3USB3102ZLE
IC USB3.0&USB2.0 SWITCH 32TQFNManufacturer: Diodes Incorporated
Categories: Special Purpose
Quality Control: Learn More
Diodes Incorporated PI3USB3102ZLE is a high-performance USB 3.0 and USB 2.0 switch IC. This component features four channels with a 2:1 multiplexer/demultiplexer configuration, enabling flexible signal routing for USB interfaces. The PI3USB3102ZLE boasts a -3dB bandwidth of 4.7GHz, ensuring robust signal integrity for USB 3.0 SuperSpeed data transfer. It operates with a single 3.3V supply and offers a low on-state resistance of 13 Ohms maximum. The device is supplied in a 32-TQFN (3x6) package with an exposed pad for enhanced thermal performance, suitable for surface mount applications. This USB switch finds application in consumer electronics, computing, and industrial automation sectors requiring reliable USB connectivity.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | USB 2.0, USB 3.0 |
| Packaging | Tray |
| Package / Case | 32-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | - |
| Applications | USB |
| On-State Resistance (Max) | 13Ohm |
| -3db Bandwidth | 4.7GHz |
| Supplier Device Package | 32-TQFN (3x6) |
| Voltage - Supply, Single (V+) | 3.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Channels | 4 |
Request a Quote
Clients Also Buy

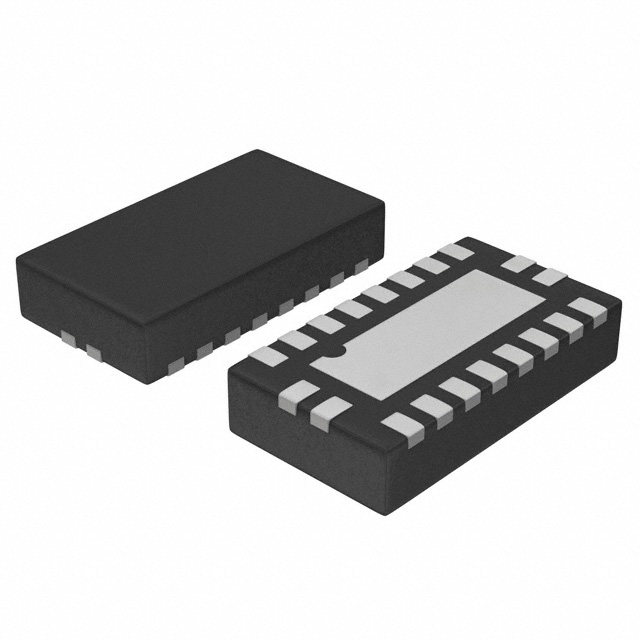

PI3PCIE3212ZBEX
