PI3USB221ZEEX
IC USB SWITCH 10TDFNManufacturer: Diodes Incorporated
Categories: Special Purpose
Quality Control: Learn More
The Diodes Incorporated PI3USB221ZEEX is a high-speed USB 2.0 switch designed for efficient signal routing. This single-channel, 2:1 multiplexer/demultiplexer offers a 1.1GHz -3dB bandwidth, ensuring robust performance for USB applications. Featuring bi-directional signal capability, the PI3USB221ZEEX boasts a maximum on-state resistance of 6 Ohms. Its compact 10-TDFN (3x3) package with an exposed pad is ideal for surface mount applications. Operating within a single supply voltage range of 2.3V to 3.6V and an ambient temperature range of -40°C to 85°C, this electronic component is suitable for various industries including consumer electronics and computing. The PI3USB221ZEEX is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Bi-Directional, USB 2.0 |
| Packaging | Tape & Reel (TR) |

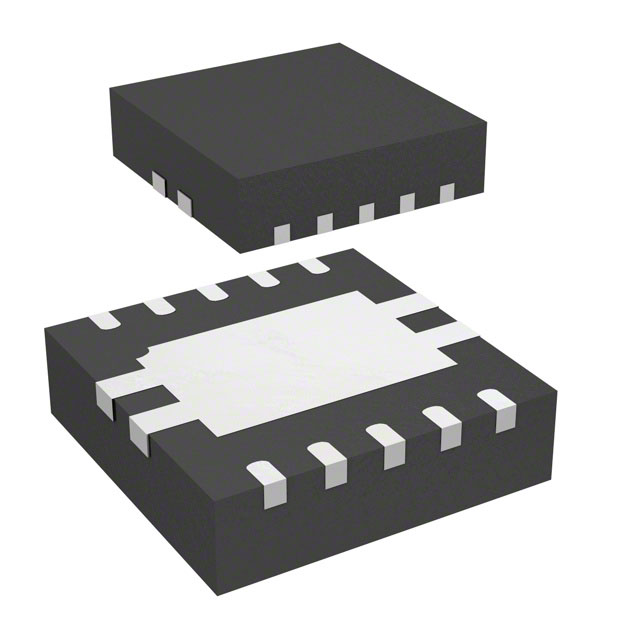

| Package / Case | 10-VFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | USB |
| On-State Resistance (Max) | 6Ohm |
| -3db Bandwidth | 1.1GHz |
| Supplier Device Package | 10-TDFN (3x3) |
| Voltage - Supply, Single (V+) | 2.3V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Channels | 1 |
