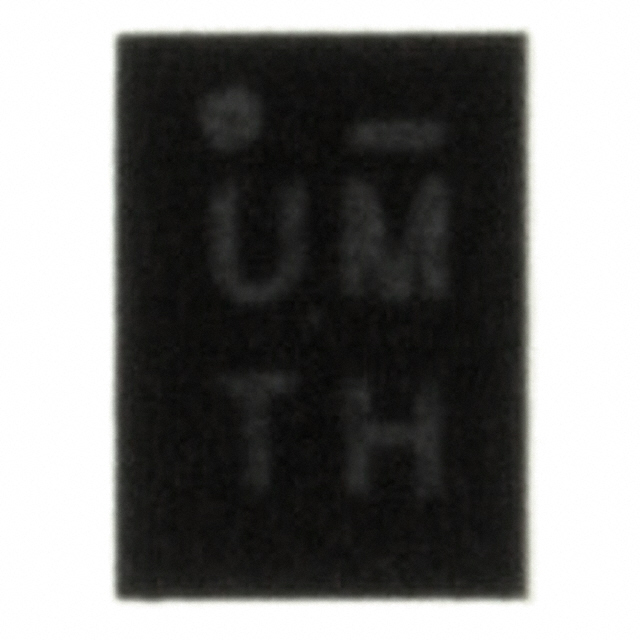

PI3USB10MZKE+DMX
IC USB SWITCH DUAL 2X1 12TQFNManufacturer: Diodes Incorporated
Categories: Special Purpose
Quality Control: Learn More
Diodes Incorporated PI3USB10MZKE-DMX is a 2-channel, 2:1 USB switch IC designed for high-speed data routing. This component features bi-directional signal flow and supports USB 2.0 specifications with a -3dB bandwidth of 700MHz. The PI3USB10MZKE-DMX offers a maximum on-state resistance of 6.5 Ohms and operates from a single supply voltage ranging from 2.7V to 5V. The device is housed in a compact 12-TQFN (1.6x2.2) package, suitable for surface mount applications. Typical industries utilizing this component include consumer electronics, data communications, and automotive systems. The part is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Bi-Directional, USB 2.0 |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | USB |
| On-State Resistance (Max) | 6.5Ohm |
| -3db Bandwidth | 700MHz |
| Supplier Device Package | 12-TQFN (1.6x2.2) |
| Voltage - Supply, Single (V+) | 2.7V ~ 5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Channels | 2 |
