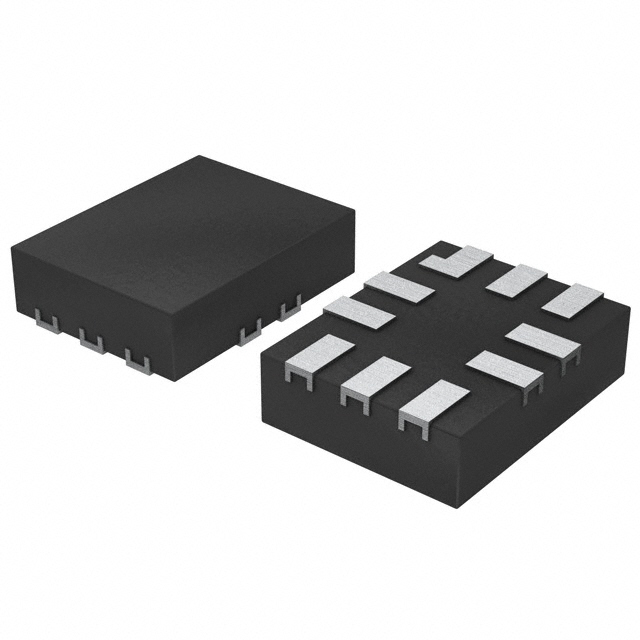

PI3USB102EZLIEX
IC USB 2.0 SWITCH 10TQFNManufacturer: Diodes Incorporated
Categories: Special Purpose
Quality Control: Learn More
Diodes Incorporated PI3USB102EZLIEX is a single-channel USB 2.0 switch IC supporting bi-directional data flow. This component features a 2:1 multiplexer/demultiplexer circuit and operates with a single supply voltage ranging from 3V to 5.5V. The PI3USB102EZLIEX offers a typical on-state resistance of 4 Ohms and a -3dB bandwidth of 1GHz, making it suitable for high-speed USB 2.0 applications. Supplied in a 10-TQFN (1.3x1.6) package, it is designed for surface mounting and is available on tape and reel. This device finds application in consumer electronics, mobile devices, and industrial control systems where robust USB 2.0 signal switching is required.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bi-Directional, USB 2.0 |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WFQFN |
| Mounting Type | Surface Mount |
| Operating Temperature | - |
| Applications | USB |
| On-State Resistance (Max) | 4Ohm (Typ) |
| -3db Bandwidth | 1GHz |
| Supplier Device Package | 10-TQFN (1.3x1.6) |
| Voltage - Supply, Single (V+) | 3V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Channels | 1 |
