PI3TB212ZLEX
THUNDERBOLT AND DISPLAYPORT SWITManufacturer: Diodes Incorporated
Categories: Special Purpose
Quality Control: Learn More
Diodes Incorporated PI3TB212ZLEX is a high-performance 5-channel switch IC designed for advanced signal routing. This component features a 3:1 multiplexer/demultiplexer configuration, facilitating efficient data path management. Operating with a single supply voltage between 3V and 3.6V, the PI3TB212ZLEX is optimized for high-speed data transmission. Its 24-TQFN (3x3) package with exposed pad ensures excellent thermal performance and ease of surface-mount integration. The operating temperature range of 0°C to 105°C (TA) makes it suitable for demanding environments. This switch IC is commonly utilized in applications requiring Thunderbolt and DisplayPort signal switching, supporting next-generation connectivity in computing and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |

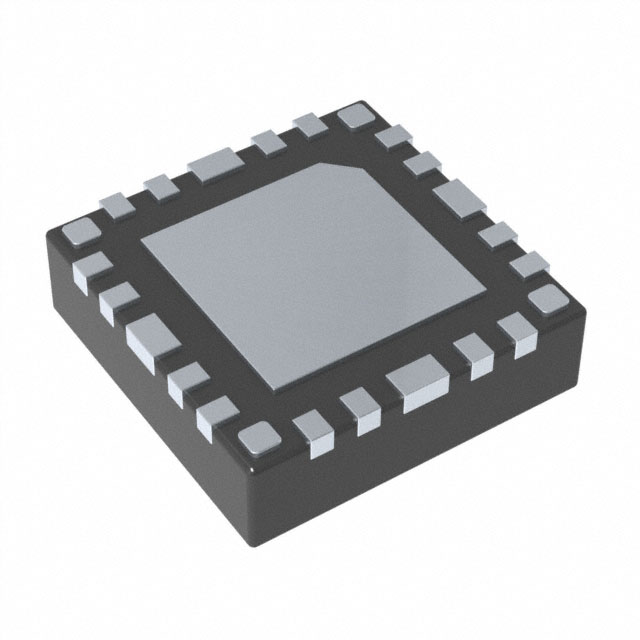

| Package / Case | 24-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Applications | - |
| On-State Resistance (Max) | - |
| -3db Bandwidth | - |
| Supplier Device Package | 24-TQFN (3x3) |
| Voltage - Supply, Single (V+) | 3V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 3:1 |
| Number of Channels | 5 |
