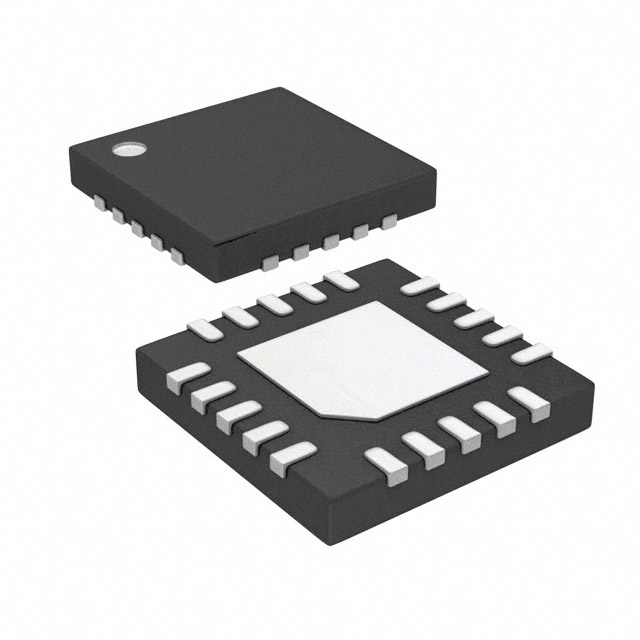

PI3DBS3224ZNAEX
IC MUX/DEMUX HS 2:4 20-TQFNManufacturer: Diodes Incorporated
Categories: Special Purpose
Quality Control: Learn More
Diodes Incorporated PI3DBS3224ZNAEX is a high-speed 2-channel multiplexer/demultiplexer designed for USB 2.0 applications. This electronic component features bi-directional, 2:1 multiplexing capability, supporting a -3dB bandwidth of 1.2GHz. The device operates with a single supply voltage ranging from 3V to 3.6V and offers an on-state resistance of a maximum of 19 Ohms. Packaged in a compact 20-TQFN (3x3) with an exposed pad, the PI3DBS3224ZNAEX is suitable for surface mount applications. Its operating temperature range is -40°C to 85°C. This component finds utility in various industries requiring high-speed data switching for USB connectivity.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bi-Directional, USB 2.0 |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | USB |
| On-State Resistance (Max) | 19Ohm |
| -3db Bandwidth | 1.2GHz |
| Supplier Device Package | 20-TQFN (3x3) |
| Voltage - Supply, Single (V+) | 3V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Channels | 2 |
