ZMM5255B-7
DIODE ZENER 28V 500MW MINI MELFManufacturer: Diodes Incorporated
Categories: Single Zener Diodes
Quality Control: Learn More

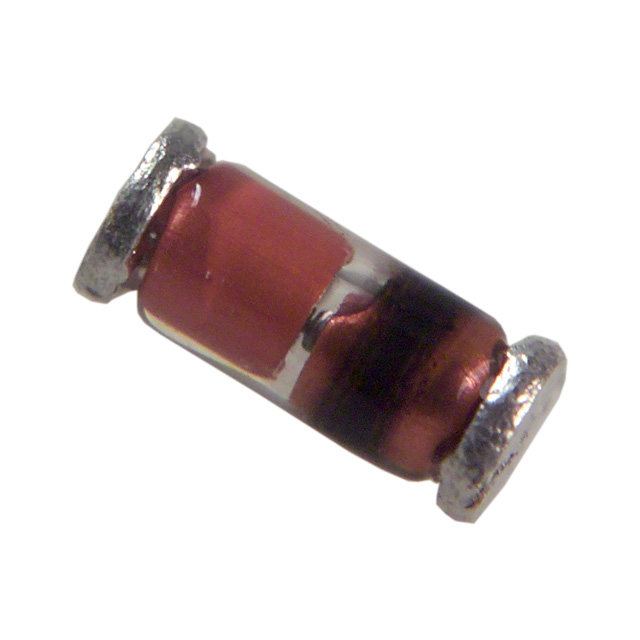

Diodes Incorporated ZMM5255B-7 Zener Diode offers precise 28V regulation with a ±5% tolerance. This 500mW device is housed in a Mini MELF (DO-213AC, SOD-80) package, suitable for surface mounting applications. It features a low reverse leakage of 100 nA at 21V and a maximum impedance of 44 Ohms. The operating temperature range is -65°C to 175°C. This component is commonly found in power supply circuits, voltage regulation stages, and signal clamping applications across various industrial, consumer electronics, and automotive sectors. Supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 28 V |
| Impedance (Max) (Zzt) | 44 Ohms |
| Supplier Device Package | Mini MELF |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 100 nA @ 21 V |
