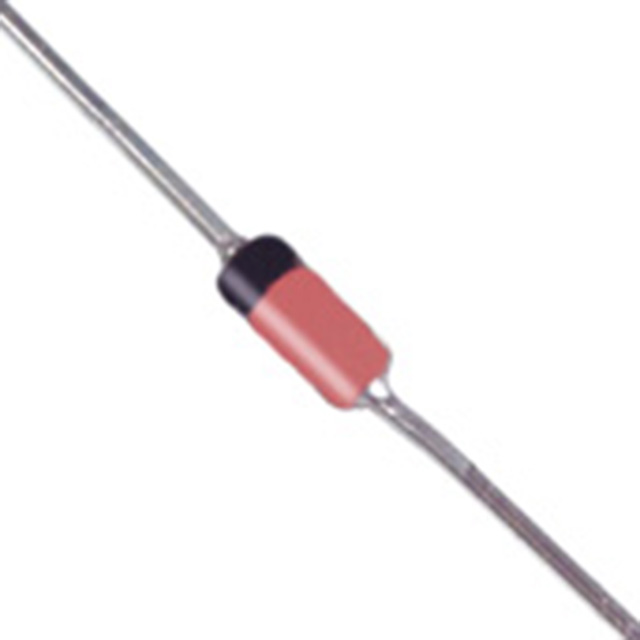

1N5247B-T
DIODE ZENER 17V 500MW DO35Manufacturer: Diodes Incorporated
Categories: Single Zener Diodes
Quality Control: Learn More
Diodes Incorporated 1N5247B-T is a 17V Zener diode delivering 500mW of power dissipation in a DO-35 axial package. This component features a tight ±5% voltage tolerance, with a nominal Zener voltage (Vz) of 17V. Reverse leakage current at 13V is specified at 100 nA, and the maximum Zener impedance (Zzt) is 19 Ohms. The forward voltage (Vf) at 200 mA is a maximum of 1.1V. Operating temperature ranges from -65°C to 200°C. This device is commonly employed in voltage regulation and transient suppression applications across industrial control, consumer electronics, and automotive sectors. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-204AH, DO-35, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C ~ 200°C |
| Voltage - Zener (Nom) (Vz) | 17 V |
| Impedance (Max) (Zzt) | 19 Ohms |
| Supplier Device Package | DO-35 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 100 nA @ 13 V |
