DDTC122LU-7-F
TRANS PREBIAS NPN 50V SOT323Manufacturer: Diodes Incorporated
Categories: Single, Pre-Biased Bipolar Transistors
Quality Control: Learn More

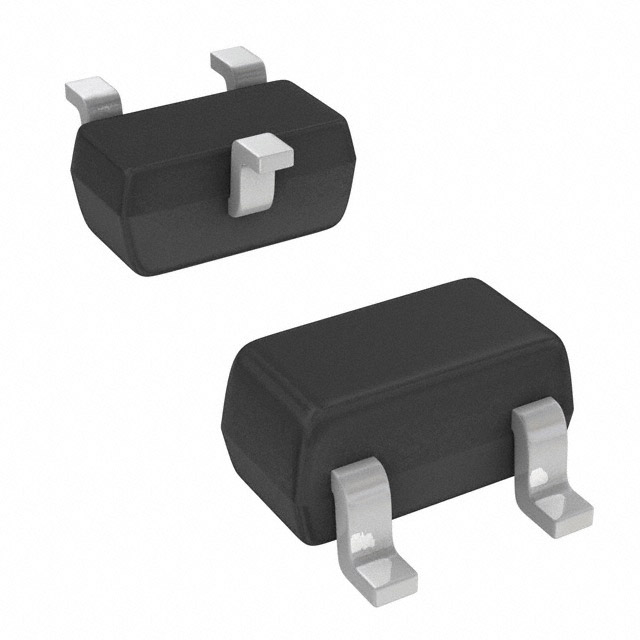

Diodes Incorporated DDTC122LU-7-F is an NPN pre-biased bipolar junction transistor. This surface mount device, housed in a SOT-323 package, features a collector-emitter breakdown voltage of 50V and a maximum collector current of 100mA. It offers a transition frequency of 200MHz and dissipates a maximum power of 200mW. The device integrates base resistors R1 (220 Ohms) and R2 (10 kOhms), providing a minimum DC current gain (hFE) of 56 at 10mA and 5V. Typical applications for this component include digital logic circuits and general-purpose switching in consumer electronics and industrial automation. It is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-70, SOT-323 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN - Pre-Biased |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 250µA, 5mA |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 56 @ 10mA, 5V |
| Supplier Device Package | SOT-323 |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Power - Max | 200 mW |
| Frequency - Transition | 200 MHz |
| Resistor - Base (R1) | 220 Ohms |
| Resistor - Emitter Base (R2) | 10 kOhms |
