DGTD65T40S1PT
IGBT 600V-X TO247 TUBE 0.45KManufacturer: Diodes Incorporated
Categories: Single IGBTs
Quality Control: Learn More
IGBT Field Stop 650 V 80 A 341 W Through Hole TO-247
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |

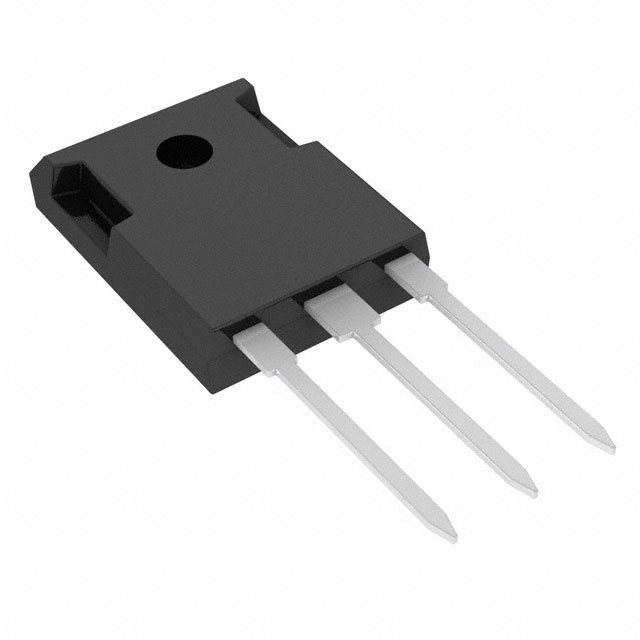

| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 145 ns |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 40A |
| Supplier Device Package | TO-247 |
| IGBT Type | Field Stop |
| Td (on/off) @ 25°C | 58ns/245ns |
| Switching Energy | 1.15mJ (on), 350µJ (off) |
| Test Condition | 400V, 40A, 7.9Ohm, 15V |
| Gate Charge | 219 nC |
| Current - Collector (Ic) (Max) | 80 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector Pulsed (Icm) | 160 A |
| Power - Max | 341 W |
Request a Quote
