DMTH4001SPSQ-13
MOSFET BVDSS: 31V~40V POWERDI506Manufacturer: Diodes Incorporated
Categories: Single FETs, MOSFETs
Quality Control: Learn More

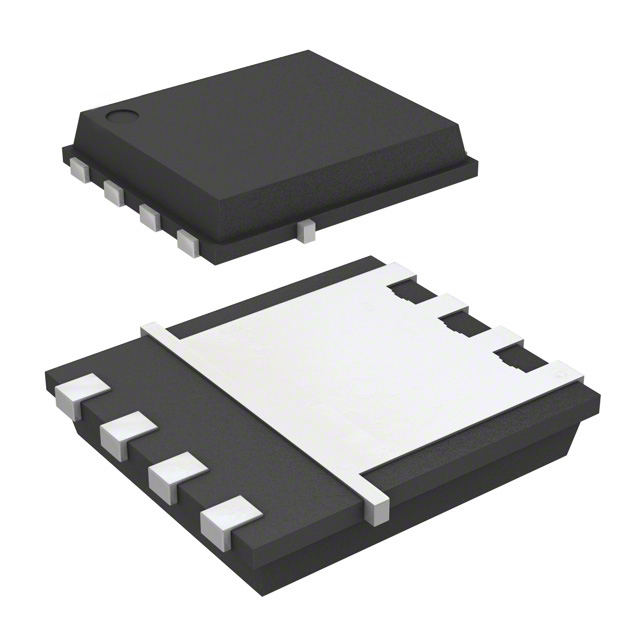

Diodes Incorporated DMTH4001SPSQ-13 is an N-Channel MOSFET designed for high-power automotive applications. This device features a Drain-to-Source Voltage (Vdss) of 40V and a continuous drain current (Id) of 225A at 25°C (Tc). With a low Rds On of 1mOhm at 30A and 10V, it offers efficient power handling. The DMTH4001SPSQ-13 is packaged in a PowerDI5060-8 (Type K) surface-mount footprint, enabling robust thermal management with a power dissipation of 187.5W (Tc). Key parameters include Gate Charge (Qg) of 144 nC at 10V and Input Capacitance (Ciss) of 10787 pF at 20V. Operating across a temperature range of -55°C to 175°C (TJ), this AEC-Q101 qualified component is suitable for demanding automotive environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 225A (Tc) |
| Rds On (Max) @ Id, Vgs | 1mOhm @ 30A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 3.1W (Ta), 187.5W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | PowerDI5060-8 (Type K) |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 144 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 10787 pF @ 20 V |
| Qualification | AEC-Q101 |
