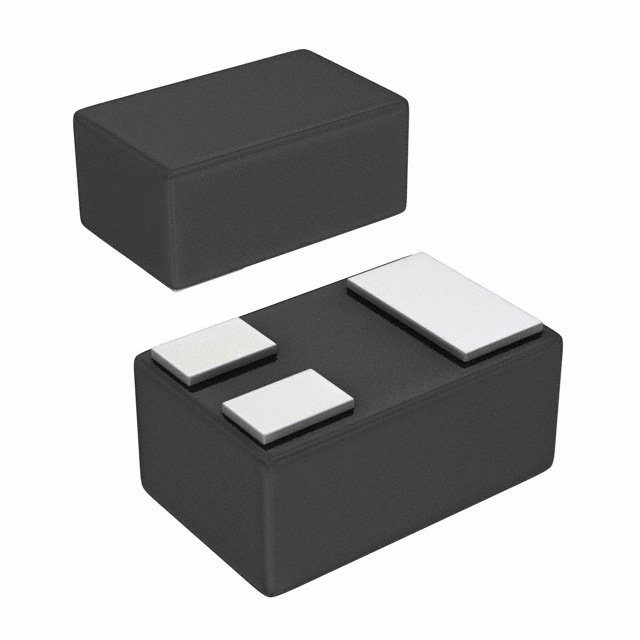

DMP2088LCP3-7
MOSFET P-CH 20V 2.9A X2DSN1006-3Manufacturer: Diodes Incorporated
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Diodes Incorporated DMP2088LCP3-7 is a P-channel MOSFET designed for space-constrained applications. This device features a 20V drain-source voltage rating and a continuous drain current capability of 2.9A at 25°C ambient. The low on-resistance of 88mOhm is achieved at 500mA drain current and 8V gate-source voltage, with a threshold voltage of 1.2V. With a maximum power dissipation of 1.13W, it is suitable for surface-mount applications. The X2-DSN1006-3 package offers a minimal footprint. This component finds utility in power management circuits within the consumer electronics and industrial automation sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-XFDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 2.9A (Ta) |
| Rds On (Max) @ Id, Vgs | 88mOhm @ 500mA, 8V |
| FET Feature | - |
| Power Dissipation (Max) | 1.13W |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Supplier Device Package | X2-DSN1006-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 8V |
| Vgs (Max) | -12V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 1.5 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 160 pF @ 10 V |
