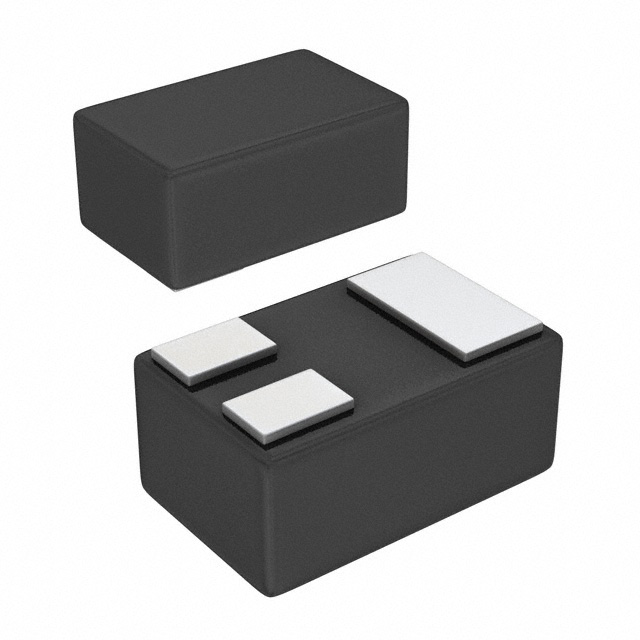

DMP2078LCA3-7
MOSFET P-CH 20V 3.4A X4DSN1006-3Manufacturer: Diodes Incorporated
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 20 V 3.4A (Ta) 810mW (Ta) Surface Mount X4-DSN1006-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 3-XFDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 3.4A (Ta) |
| Rds On (Max) @ Id, Vgs | 78mOhm @ 500mA, 8V |
| FET Feature | - |
| Power Dissipation (Max) | 810mW (Ta) |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Supplier Device Package | X4-DSN1006-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 8V |
| Vgs (Max) | -12V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 1.6 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 228 pF @ 10 V |
