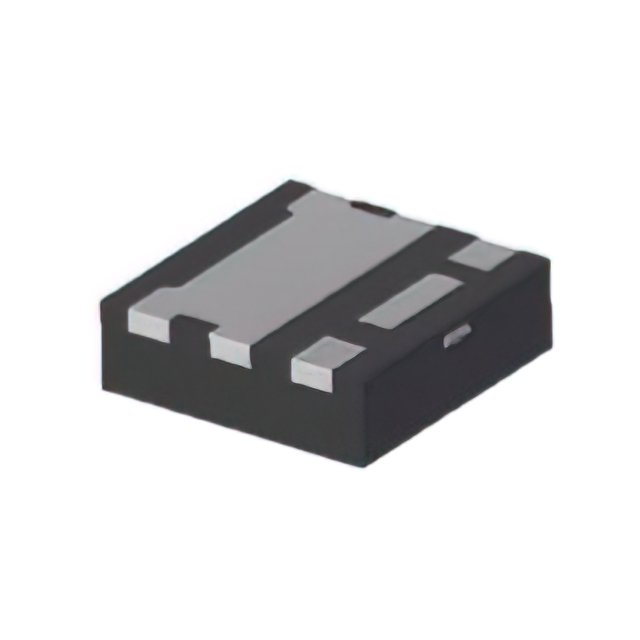

DMP2035UFCL-7
MOSFET P-CH 20V 6.6A 6UDFNManufacturer: Diodes Incorporated
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 20 V 6.6A (Ta) 740mW (Ta) Surface Mount U-DFN1616-6 (Type K)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 6-PowerUFDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 6.6A (Ta) |
| Rds On (Max) @ Id, Vgs | 24mOhm @ 8A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 740mW (Ta) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | U-DFN1616-6 (Type K) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Vgs (Max) | ±8V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 44 nC @ 8 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2200 pF @ 10 V |
