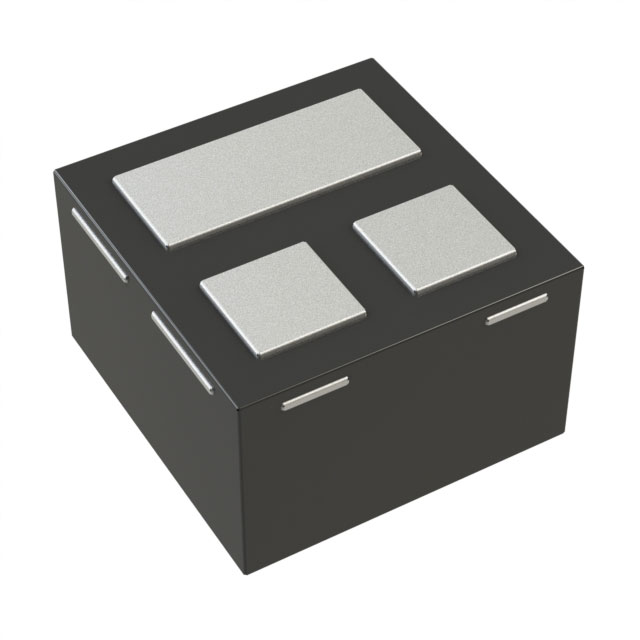

DMN2991UFZQ-7B
MOSFET BVDSS: 8V~24V X2-DFN0606-Manufacturer: Diodes Incorporated
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 20 V 550mA (Ta) 450mW (Ta) Surface Mount X2-DFN0606-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 3-XFDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 550mA (Ta) |
| Rds On (Max) @ Id, Vgs | 990mOhm @ 100mA, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 450mW (Ta) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | X2-DFN0606-3 |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Vgs (Max) | ±8V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 0.28 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 14.6 pF @ 16 V |
| Qualification | AEC-Q101 |
