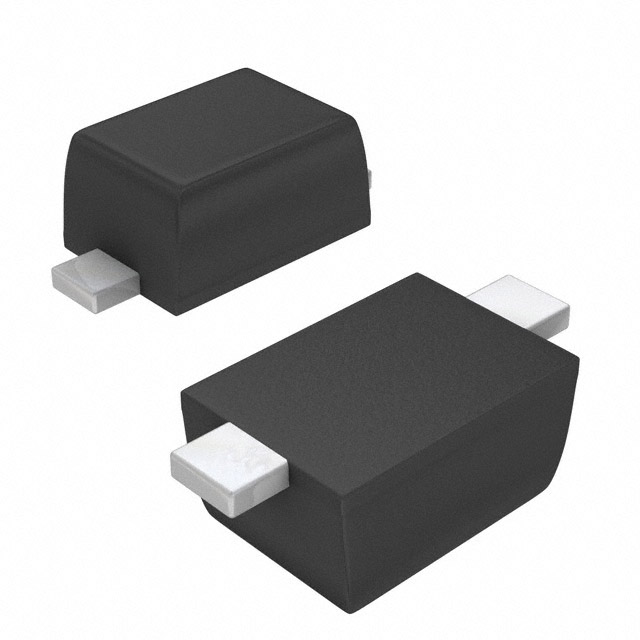

productimage

ZHCS350TA-2477

DIODE

Manufacturer: Diodes Incorporated

Categories: Single Diodes

Quality Control: Learn More

DIODES INCORPORATED ZHCS350TA-2477 is a Schottky diode designed for precise control in electronic systems. This component features a 40V reverse voltage rating and a 350mA average rectified forward current capacity. Its fast recovery time of 1.6 ns and a forward voltage drop of 810mV at 350mA make it suitable for high-frequency switching applications. The low reverse leakage current of 12 µA at 30V and a capacitance of 3.3pF at 25V and 1MHz further enhance its performance in demanding circuits. Packaged in a compact SOD-523 (SC-79) surface mount configuration, this diode is ideal for use in telecommunications, consumer electronics, and industrial control systems where efficiency and miniaturization are critical. The operating junction temperature reaches up to 125°C.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Bulk
Technical Details:
PackagingBulk
Package / CaseSC-79, SOD-523
Mounting TypeSurface Mount
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)1.6 ns
TechnologySchottky
Capacitance @ Vr, F3.3pF @ 25V, 1MHz
Current - Average Rectified (Io)350mA
Supplier Device PackageSOD-523
Operating Temperature - Junction125°C
Voltage - DC Reverse (Vr) (Max)40 V
Voltage - Forward (Vf) (Max) @ If810 mV @ 350 mA
Current - Reverse Leakage @ Vr12 µA @ 30 V
