ZHCS2000TC
DIODE SCHOTTKY 40V 2A SOT26Manufacturer: Diodes Incorporated
Categories: Single Diodes
Quality Control: Learn More

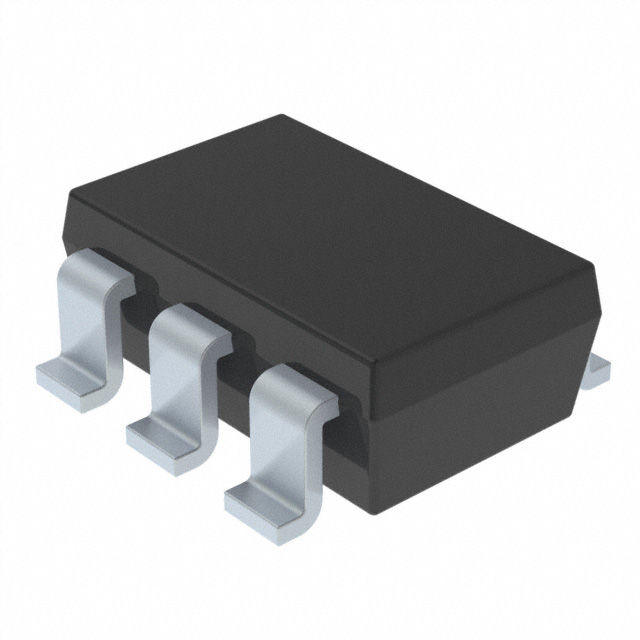

Diodes Incorporated ZHCS2000TC is a Schottky barrier rectifier featuring a 40V reverse voltage rating and a 2A average forward current. This component is housed in a SOT-26 package, suitable for surface mounting. Key electrical specifications include a maximum forward voltage drop of 500mV at 2A and a reverse leakage current of 300µA at 30V. The device exhibits a typical capacitance of 50pF at 25V and 1MHz. With a fast reverse recovery time of 5.5ns, it is designed for high-speed switching applications. The operating junction temperature is rated up to 125°C maximum. This diode is commonly utilized in power supply circuits, high-frequency rectification, and switching applications across industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 5.5 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 50pF @ 25V, 1MHz |
| Current - Average Rectified (Io) | 2A |
| Supplier Device Package | SOT-26 |
| Operating Temperature - Junction | 125°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 2 A |
| Current - Reverse Leakage @ Vr | 300 µA @ 30 V |
