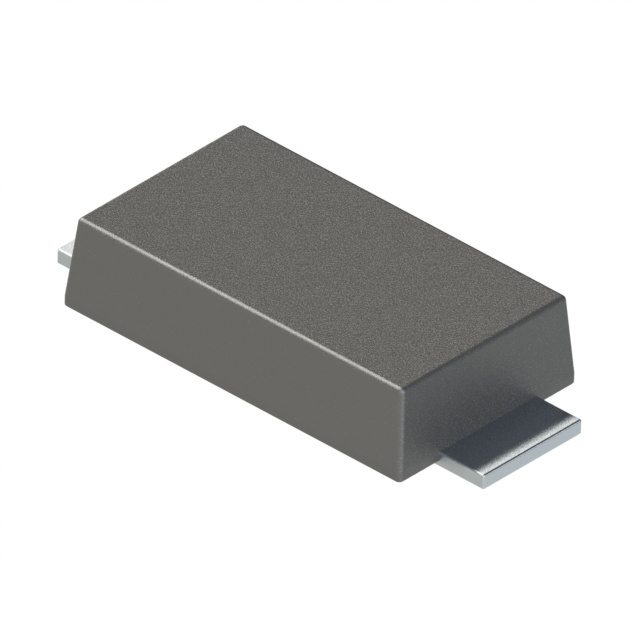

US1NDFQ-13
ULTRAFAST RECOVERY RECTIFIER SODManufacturer: Diodes Incorporated
Categories: Single Diodes
Quality Control: Learn More
Diode 1200 V 1A Surface Mount D-Flat
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 80 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 5pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | D-Flat |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 2 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1200 V |
| Qualification | AEC-Q101 |
