SF10DG_HF
Superfast Recovery Rectifier DO-Manufacturer: Diodes Incorporated
Categories: Single Diodes
Quality Control: Learn More

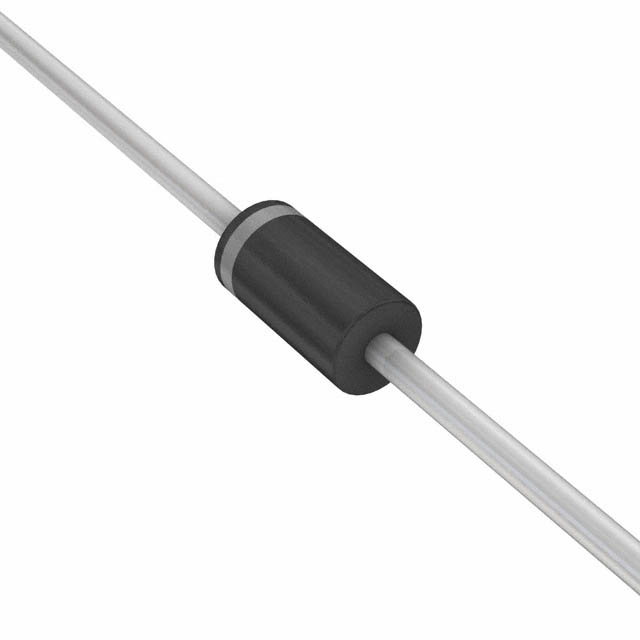

Diode 200 V 1A Through Hole DO-41
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-204AL, DO-41, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 75pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | DO-41 |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 200 V |
Request a Quote
