SDM1A30CSP-7

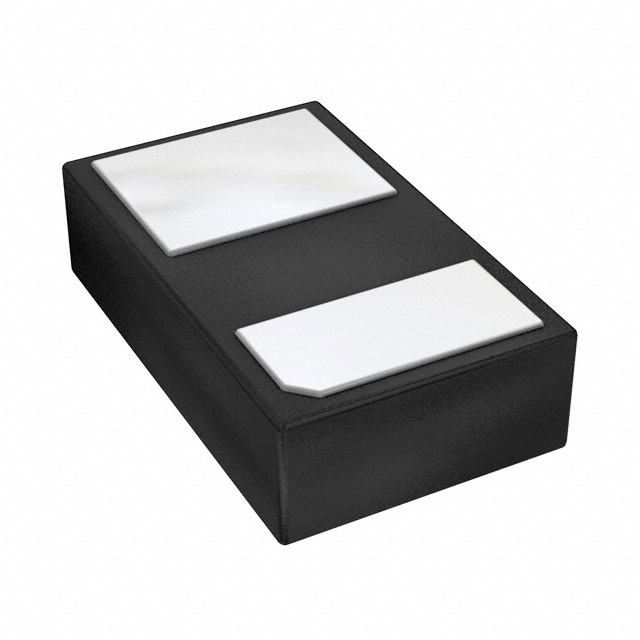

DIODE SCHOTT 30V 1A X3-WLB1006-2Manufacturer: Diodes Incorporated
Categories: Single Diodes
Quality Control: Learn More
Diodes Incorporated's SDM1A30CSP-7 is a Schottky diode designed for high-frequency rectification applications. This component features a 30V maximum reverse voltage (Vr) and a 1A average rectified forward current (Io). The forward voltage drop (Vf) is a maximum of 525mV at 1A, contributing to efficient power conversion. Its low capacitance of 40pF at 4V and 1MHz makes it suitable for high-speed switching. The reverse leakage current is specified at 100 µA at 30V. The SDM1A30CSP-7 is packaged in a compact 2-XDFN (X3-WLB1006-2) for surface mounting and is supplied on tape and reel. This device is engineered for operation across a wide temperature range of -55°C to 150°C. It finds application in power management, mobile devices, and telecommunications infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-XDFN |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 40pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | X3-WLB1006-2 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 525 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 30 V |
