SBR545SAFQ-13
DIODE SBR 45V 5A SMAF T&R 10KManufacturer: Diodes Incorporated
Categories: Single Diodes
Quality Control: Learn More
Diode 45 V 5A Surface Mount SMAF
Additional Information
Series: SBR®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214AC, SMA Flat Leads |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Super Barrier |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 5A |
| Supplier Device Package | SMAF |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Voltage - Forward (Vf) (Max) @ If | 560 mV @ 5 A |
| Current - Reverse Leakage @ Vr | 200 µA @ 45 V |
| Qualification | AEC-Q101 |
Request a Quote
Clients Also Buy

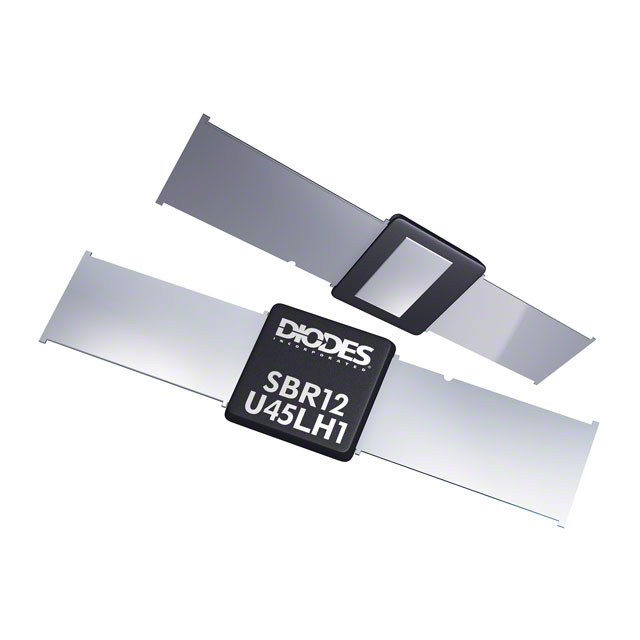

SBR12U45LH1-13
