SBR4U130LP-7
DIODE SBR 130V 4A U-DFN3030-8Manufacturer: Diodes Incorporated
Categories: Single Diodes
Quality Control: Learn More

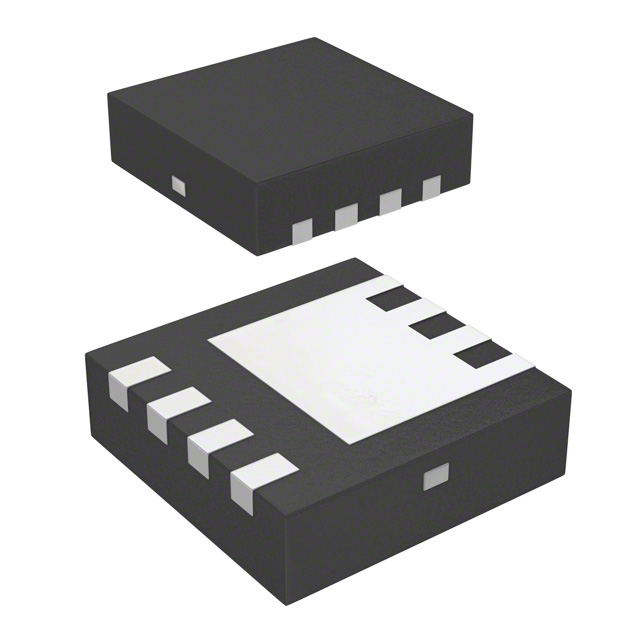

Diode 130 V 4A Surface Mount U-DFN3030-8
Additional Information
Series: SBR®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerUDFN |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Super Barrier |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 4A |
| Supplier Device Package | U-DFN3030-8 |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 130 V |
| Voltage - Forward (Vf) (Max) @ If | 750 mV @ 4 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 130 V |
