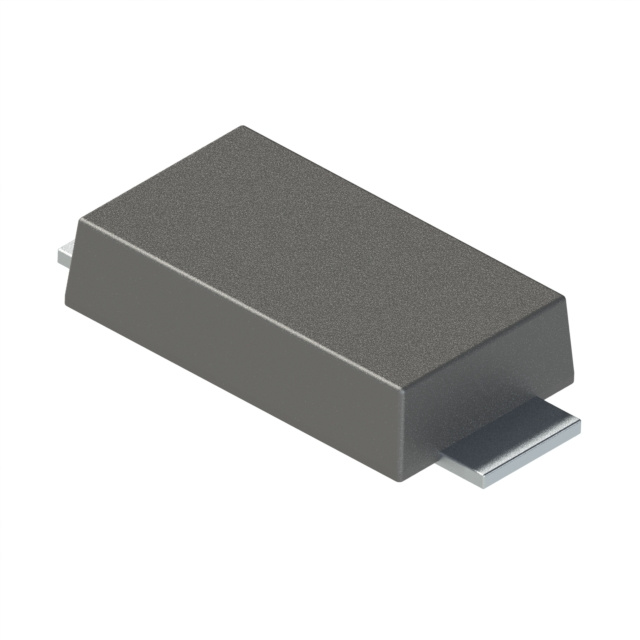

SBR3M100SAF-13
DIODE SBR 100V 3A SMAF T&RManufacturer: Diodes Incorporated
Categories: Single Diodes
Quality Control: Learn More
Diodes Incorporated SBR3M100SAF-13 is a Super Barrier Rectifier diode designed for efficient power rectification. This component features a 100V reverse voltage rating and a 3A average rectified current capability. The forward voltage drop is a maximum of 810mV at 3A, and the reverse leakage current is specified at 1 µA at 100V. The SBR3M100SAF-13 is housed in a compact SMAF (DO-214AC) surface-mount package, supplied on tape and reel for automated assembly. Its operational temperature range is -55°C to 150°C. This rectifier is suitable for applications in power supplies, automotive electronics, and industrial control systems requiring reliable and efficient diode performance.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214AC, SMA Flat Leads |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Super Barrier |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 3A |
| Supplier Device Package | SMAF |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 810 mV @ 3 A |
| Current - Reverse Leakage @ Vr | 1 µA @ 100 V |
