SBR2M100SAF-13
DIODE SBR 100V 2A SMAF T&RManufacturer: Diodes Incorporated
Categories: Single Diodes
Quality Control: Learn More
Diodes Incorporated SBR2M100SAF-13 is a Super Barrier Rectifier diode designed for efficient power rectification. This component features a 100V reverse voltage (Vr) rating and a 2A average rectified forward current (Io). The forward voltage drop (Vf) is a maximum of 780mV at 2A, with a low reverse leakage of 1 µA at 100V.

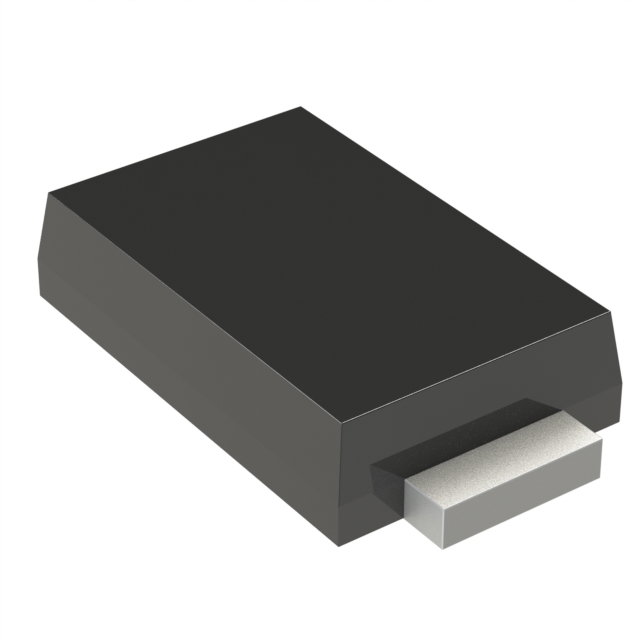

The SBR2M100SAF-13 is housed in a compact SMAF (DO-214AC, SMA Flat Leads) package, suitable for surface mount applications. Its operating temperature range is -55°C to 150°C (Junction). Supplied in Tape & Reel packaging, this diode is a reliable choice for power supply circuits, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. The technology employed offers improved performance characteristics for demanding power management applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214AC, SMA Flat Leads |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Super Barrier |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 2A |
| Supplier Device Package | SMAF |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 780 mV @ 2 A |
| Current - Reverse Leakage @ Vr | 1 µA @ 100 V |
