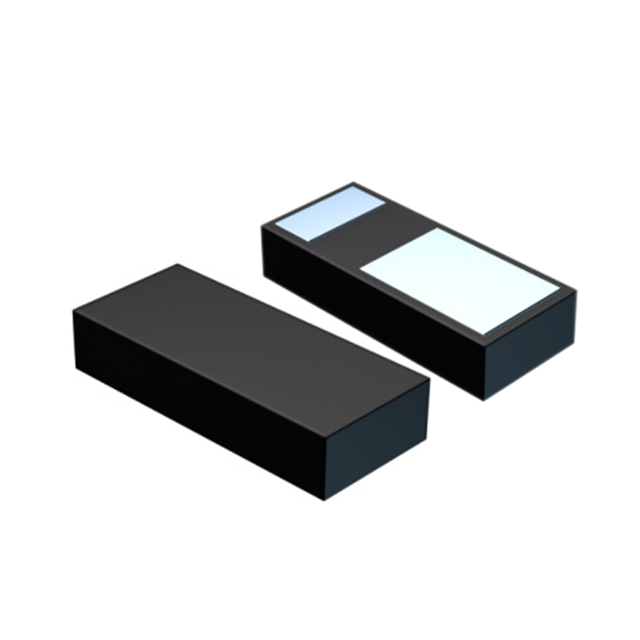

SBR05U40CSP-7
DIODE SBR 40V 500MA X2-WLB1006-2Manufacturer: Diodes Incorporated
Categories: Single Diodes
Quality Control: Learn More
Diodes Incorporated SBR® series SBR05U40CSP-7 is a Super Barrier rectifier featuring a 40V reverse voltage and 500mA average forward current. This device exhibits a low forward voltage of 460mV at 500mA, with a reverse leakage current of 75µA at 40V. The SBR05U40CSP-7 has a capacitance of 34pF at 4V, 1MHz, and operates across a junction temperature range of -55°C to 150°C. Its construction utilizes the X2-WLB1006-2 package for surface mounting, supplied on tape and reel. This component is commonly employed in power management and general rectification applications within the consumer electronics and industrial sectors.
Additional Information
Series: SBR®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-XDFN |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Super Barrier |
| Capacitance @ Vr, F | 34pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 500mA |
| Supplier Device Package | X2-WLB1006-2 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 460 mV @ 500 mA |
| Current - Reverse Leakage @ Vr | 75 µA @ 40 V |
