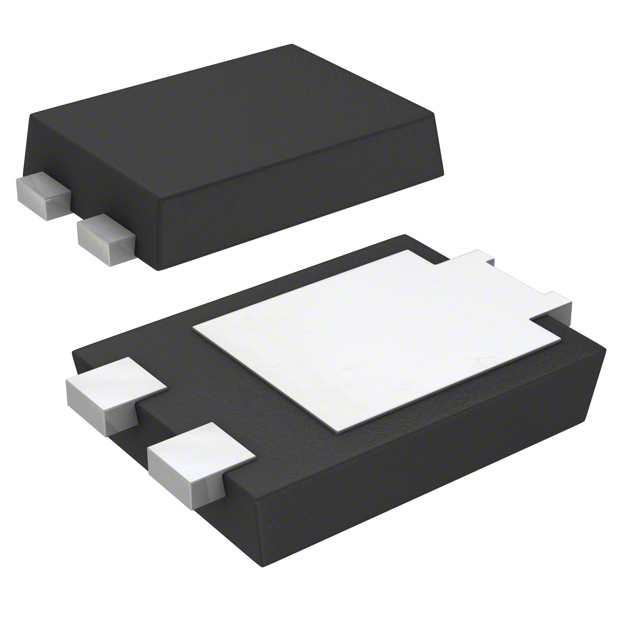

productimage

PDS1045-7

DIODE SCHOTTKY 45V 10A POWERDI5

Manufacturer: Diodes Incorporated

Categories: Single Diodes

Quality Control: Learn More

Diodes Incorporated PDS1045-7 is a Schottky diode designed for high-current rectification applications. This component features a 45V reverse voltage rating and a substantial 10A average rectified forward current capability. The forward voltage drop at 10A is a low 510mV, ensuring efficient power conversion. Its fast switching speed, characterized by a recovery time of less than 500ns for currents greater than 200mA, makes it suitable for demanding power supply designs. The PDS1045-7 is housed in a compact PowerDI™ 5 surface-mount package, facilitating efficient PCB layout and thermal management. Reverse leakage current at the maximum reverse voltage is rated at 600 µA. This diode is commonly utilized in power management circuits, automotive electronics, and industrial power systems. The PDS1045-7 is supplied in Tape & Reel packaging.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)
Technical Details:
PackagingTape & Reel (TR)
Package / CasePowerDI™ 5
Mounting TypeSurface Mount
SpeedFast Recovery =< 500ns, > 200mA (Io)
TechnologySchottky
Capacitance @ Vr, F-
Current - Average Rectified (Io)10A
Supplier Device PackagePowerDI™ 5
Operating Temperature - Junction-65°C ~ 150°C
Voltage - DC Reverse (Vr) (Max)45 V
Voltage - Forward (Vf) (Max) @ If510 mV @ 10 A
Current - Reverse Leakage @ Vr600 µA @ 45 V
