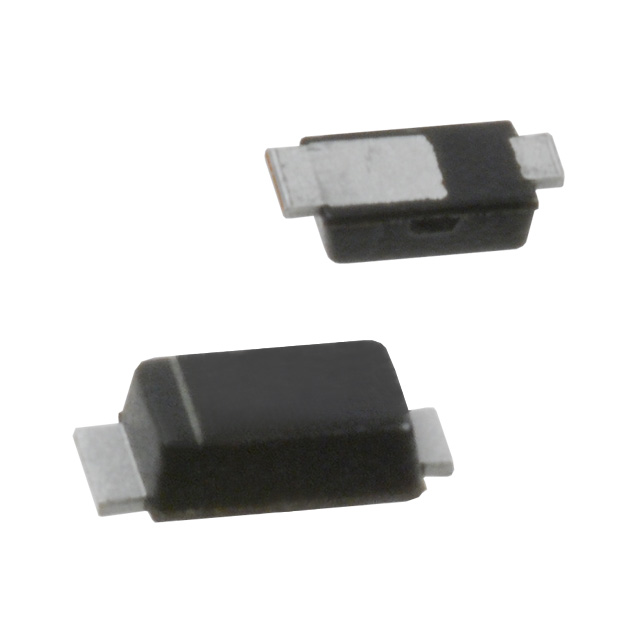

PD3S230L-7-2477
DIODEManufacturer: Diodes Incorporated
Categories: Single Diodes
Quality Control: Learn More
The Diodes Incorporated PD3S230L-7-2477 is a 30V, 2A Schottky diode designed for surface mount applications. This component features a low forward voltage drop of 450mV at 2A and a reverse leakage current of 1.5mA at 30V. Its fast recovery characteristic, suitable for speeds greater than 200mA, makes it an ideal choice for automotive applications requiring AEC-Q101 qualification. The device is housed in a compact PowerDI™ 323 package, offering efficient thermal performance. Typical applications include power management, automotive electronics, and industrial control systems. Its low capacitance of 40pF at 10V and 1MHz further enhances its utility in high-frequency circuits.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | PowerDI™ 323 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 40pF @ 10V, 1MHz |
| Current - Average Rectified (Io) | 2A |
| Supplier Device Package | PowerDI™ 323 |
| Operating Temperature - Junction | -65°C ~ 125°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 450 mV @ 2 A |
| Current - Reverse Leakage @ Vr | 1.5 mA @ 30 V |
| Qualification | AEC-Q101 |
