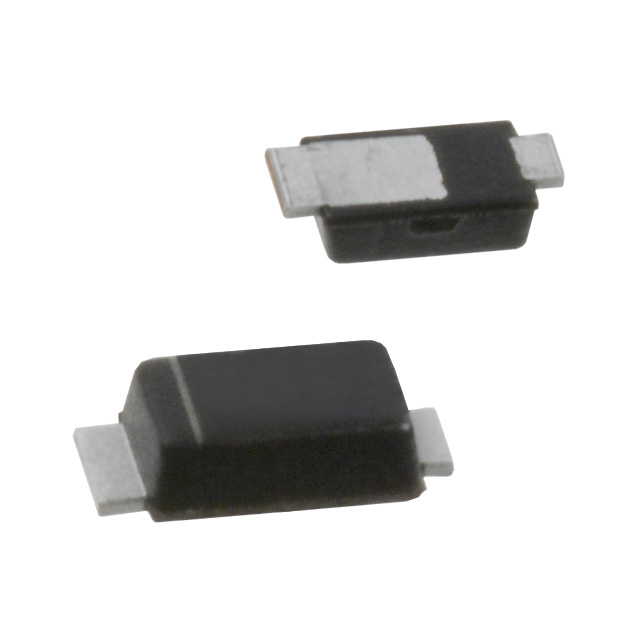

PD3S140-7-G
DIODE SCHOTTKY 40V 1A PWRDI323Manufacturer: Diodes Incorporated
Categories: Single Diodes
Quality Control: Learn More
Diodes Incorporated PD3S140-7-G is a Schottky barrier rectifier designed for efficient power management. This component features a 40V reverse voltage rating and a 1A forward current capability. The low forward voltage drop of 550mV at 1A, coupled with a reverse leakage of 50 µA at 40V, ensures high efficiency in rectification applications. With a junction capacitance of 32pF at 10V and 1MHz, it is suitable for high-frequency operation. The device operates across a wide temperature range of -65°C to 150°C and is housed in a compact PowerDI™ 323 package for surface mounting, supplied on tape and reel. This rectifier is commonly utilized in power supply circuits, voltage clamping, and reverse polarity protection across various industrial electronics and consumer applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | PowerDI™ 323 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 32pF @ 10V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | PowerDI™ 323 |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 50 µA @ 40 V |
