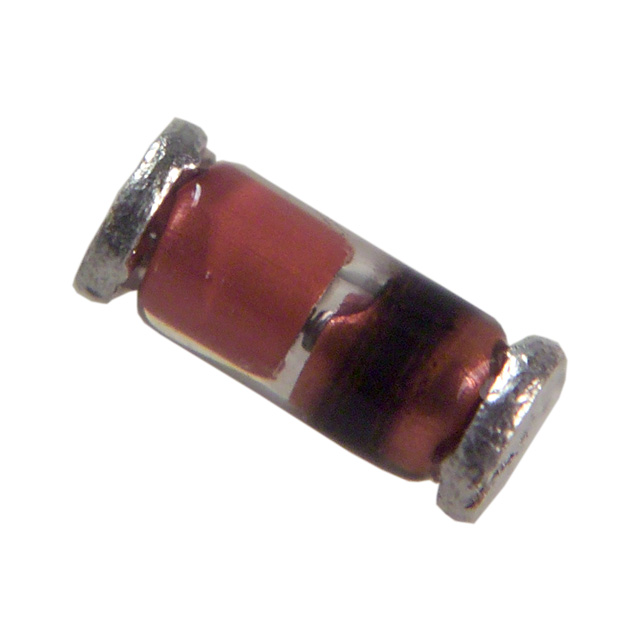

LLSD103B-7
SCHOTTKY SOD80 30V 0.35A 125CManufacturer: Diodes Incorporated
Categories: Single Diodes
Quality Control: Learn More
Diodes Incorporated LLSD103B-7 is a Schottky barrier rectifier designed for high-frequency rectification applications. This component features a 30V reverse voltage rating and a 350mA average rectified forward current. The junction temperature operates from -55°C to 125°C, ensuring robust performance in demanding environments. With a fast recovery time of 10ns and a low forward voltage drop of 600mV at 200mA, it is well-suited for power supply circuits, voltage clamping, and reverse polarity protection. The Mini MELF (SOD-80) package facilitates efficient surface mounting. Typical applications include consumer electronics, automotive systems, and industrial control. The device exhibits a low leakage current of 5µA at 20V and a capacitance of 50pF at 0V and 1MHz. The LLSD103B-7 is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 10 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 50pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 350mA |
| Supplier Device Package | Mini MELF |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 600 mV @ 200 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 20 V |
