LL6263-7

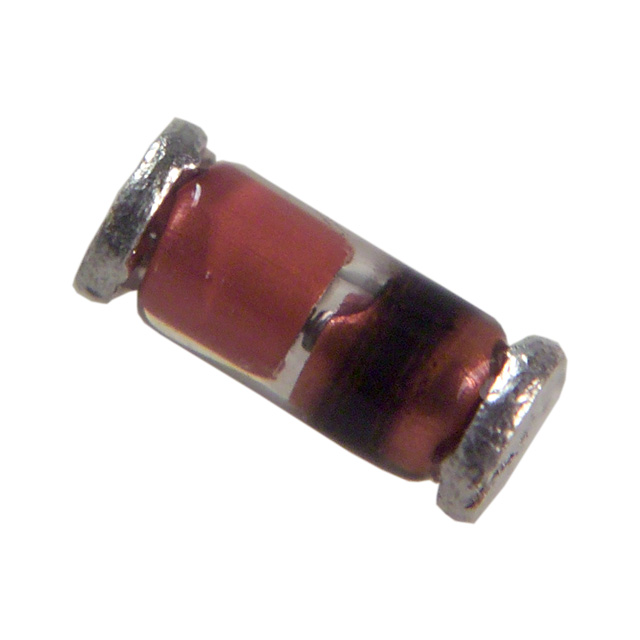

DIODE SCHOTT 60V 15MA MINI MELFManufacturer: Diodes Incorporated
Categories: Single Diodes
Quality Control: Learn More
The Diodes Incorporated LL6263-7 is a Schottky diode designed for efficient rectification in a compact Mini MELF (DO-213AC, SOD-80) package. This surface mount component offers a maximum DC reverse voltage of 60V and an average rectified forward current of 15mA. Key specifications include a low forward voltage drop of 1V at 15mA and a reverse leakage current of 200 nA at 50V. Its fast 1 ns reverse recovery time makes it suitable for high-frequency applications. The operating junction temperature range is -65°C to 175°C. This device is commonly utilized in power supply circuits, signal rectification, and switching applications across the consumer electronics and industrial sectors. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 1 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 15mA |
| Supplier Device Package | Mini MELF |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 15 mA |
| Current - Reverse Leakage @ Vr | 200 nA @ 50 V |
