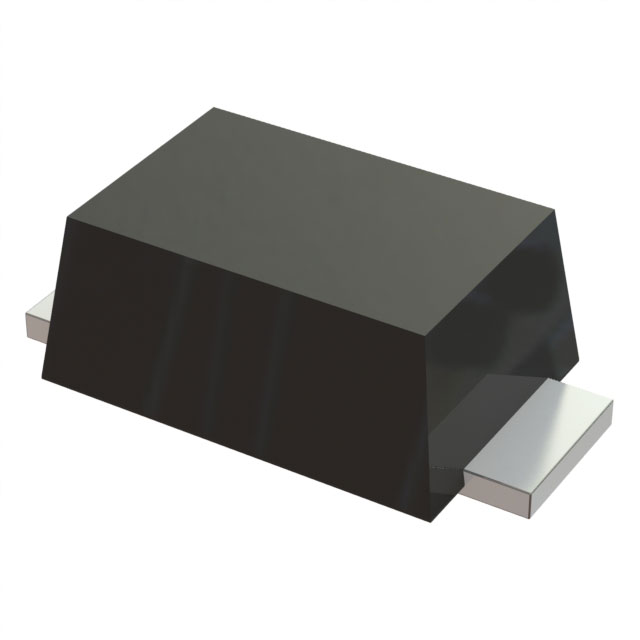

FS1ME-7
DIODE GEN PURP 1KV 1A DO219AAManufacturer: Diodes Incorporated
Categories: Single Diodes
Quality Control: Learn More
Diodes Incorporated FS1ME-7 is a general-purpose diode offering a 1000V reverse voltage (Vr) and 1A average rectified forward current (Io). This surface mount device, housed in a DO-219AA package, features a maximum forward voltage (Vf) of 1.1V at 1A. The diode exhibits a reverse leakage current of 5 µA at 1000V and a capacitance of 7.6pF at 4V and 1MHz. With a standard recovery speed exceeding 500ns for currents greater than 200mA (Io), the FS1ME-7 is suitable for applications in power supplies, consumer electronics, and industrial control systems. The operating junction temperature range is -55°C to 150°C. The component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-219AA |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 1.6 µs |
| Technology | Standard |
| Capacitance @ Vr, F | 7.6pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | DO-219AA |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
